Description
General part information

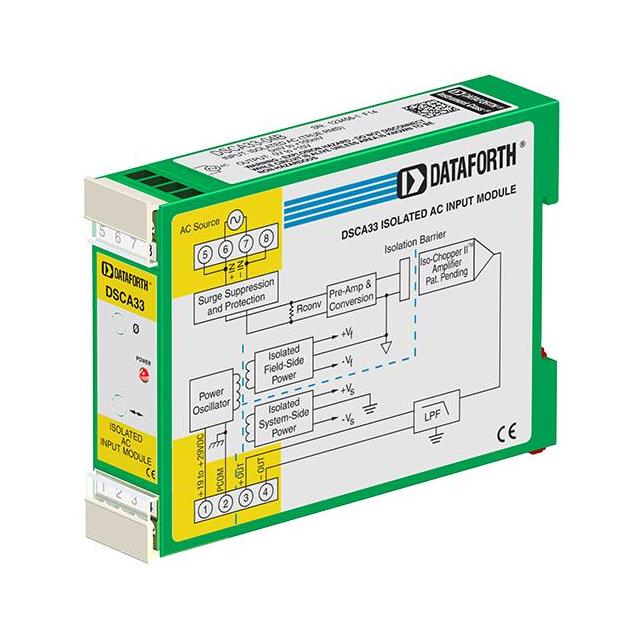

DSCA33-04B
SIGNAL CONDITIONER TRUE RMS DIN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCA33-04B |
|---|---|
| Input Type | Voltage |
| Input Voltage Range (Maximum) | 150 V |
| Input Voltage Range (Minimum) | 0 mV |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Current Range (Max) | 1 mA |
| Output Current Range (Min) | 0 mA |
| Output Type | Current |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 29 V |
| Voltage - Supply (Minimum) | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
