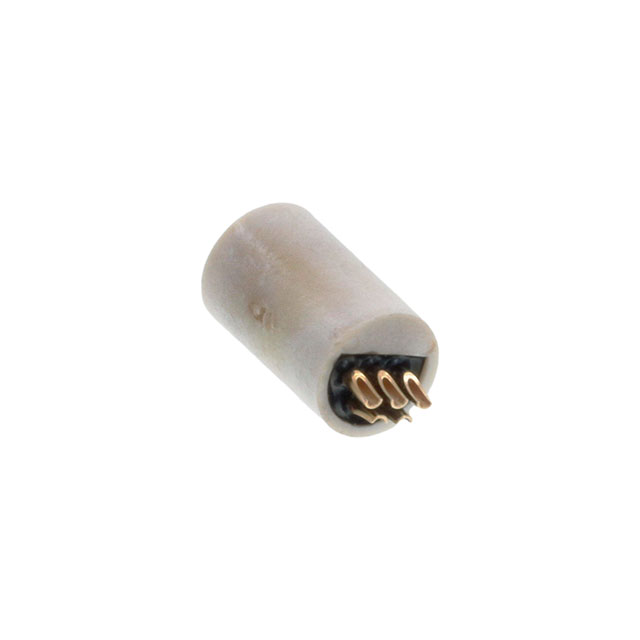

A22001-001

Active

Omnetics

CONN RCPT FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN RCPT FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A22001-001

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shielding	Unshielded

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Orientation	Color	Insert Material	Shielding	Mounting Type	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Omnetics A22001-001	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Plastic	3 A	Receptacle Female Sockets	Gold	Keyed	Natural	Liquid Crystal Polymer (LCP)	Unshielded	Free Hanging (In-Line)	Copper Alloy	Push-Pull	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
