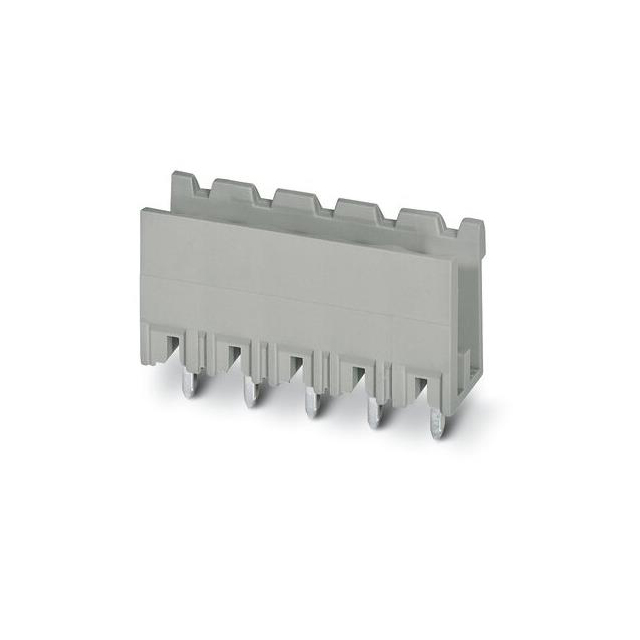

Specification	5452424

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.154 in
Current - IEC	12 A
Current - UL	15 A
Header Orientation	Vertical
Insulation Height	0.472 in
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	14
Pitch	5.08 mm
Positions Per Level	14
Termination Style	Solder
Type	Male Pins, Shrouded (2 Side), Header
Voltage - IEC	320 V
Voltage - UL	300 V

BCH Series

...

Part	Header Orientation	Pitch	Features	Voltage - IEC	Current - UL	Positions Per Level	Number of Levels	Contact Mating Finish	Number of Positions	Mounting Type	Voltage - UL	Type	Current - IEC	Termination Style	Color	Header Orientation Angle	Material Flammability Rating	Contact Tail Length	Insulation Height	Housing Material
Phoenix Contact 5452486	Vertical	0.197 in	Mating Flange	320 V	15 A	15	1	Tin	15	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Black
Phoenix Contact 5445261	Right Angle	0.197 in	Mating Flange	400 V	15 A	3	1	Tin	3	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Green	90 °	UL94 V-0	0.138 in	0.339 in	Nylon PA Polyamide
Phoenix Contact 5452301	Right Angle	5.08 mm		400 V	15 A	13	1	Tin	13	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black	90 °	UL94 V-0	0.138 in	0.339 in	Nylon PA Polyamide
Phoenix Contact 5452030	Right Angle	0.15 in		160 V	8 A	5	1	Tin	5	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	8 A	Solder	Black	90 °
Phoenix Contact 5452144	Vertical	0.197 in		320 V	15 A	16	1	Tin	16	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Black
Phoenix Contact 5452462	Vertical	0.15 in	Mating Flange	320 V	8 A	10	1	Tin	10	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	8 A	Solder	Black
Phoenix Contact 5452311	Right Angle	5.08 mm		400 V	15 A	23	1	Tin	23	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black	90 °	UL94 V-0	0.138 in	0.339 in	Nylon PA Polyamide
Phoenix Contact 5445643	Right Angle	0.197 in		400 V	15 A	23	1	Tin	23	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Green	90 °	UL94 V-0			Nylon PA Polyamide
Phoenix Contact 5452309	Right Angle	5.08 mm		400 V	15 A	21	1	Tin	21	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black	90 °
Phoenix Contact 5452406	Vertical	0.197 in		320 V	15 A	19	1	Tin	19	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black
