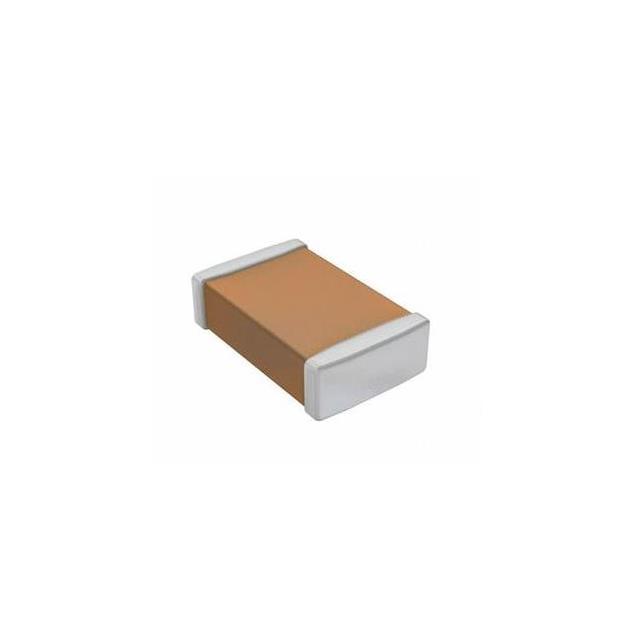

VJ0805A1R5BXAPW1BC
ActiveVishay General Semiconductor - Diodes Division
CAP CER 1.5PF 50V C0G/NP0 0805
Deep-Dive with AI
Search across all available documentation for this part.
VJ0805A1R5BXAPW1BC
ActiveVishay General Semiconductor - Diodes Division
CAP CER 1.5PF 50V C0G/NP0 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VJ0805A1R5BXAPW1BC |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] | 0.7 mm |
| Thickness (Max) [Max] | 0.028 " |
| Tolerance | 0.1 pF |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.16 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.05 | |||
| 5000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.25 | ||
| 10 | $ 0.16 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.05 | |||
| 5000 | $ 0.05 | |||
| Tape & Reel (TR) | 15000 | $ 0.03 | ||
| 30000 | $ 0.03 | |||
Description
General part information
VJ0805A1R5BXAPW1BC
1.5 pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
