2981376
ActivePhoenix Contact

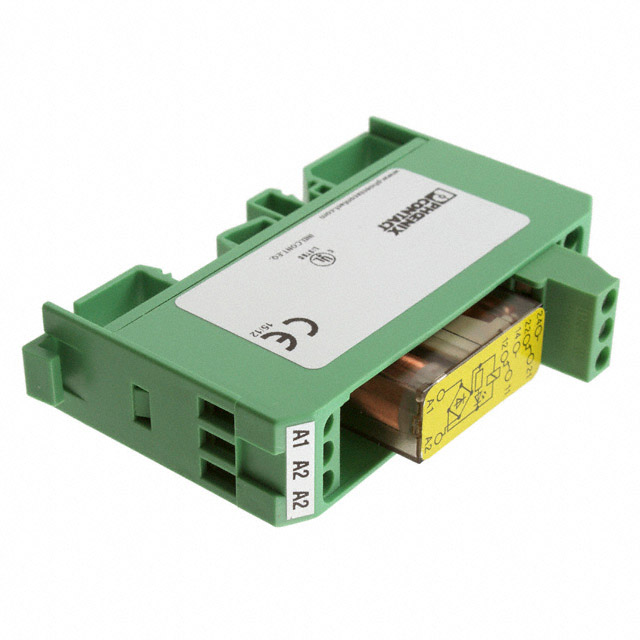

UNIVERSAL SAFETY RELAY 2PDT 120V
2981376
ActivePhoenix Contact
UNIVERSAL SAFETY RELAY 2PDT 120V
Description
General part information
2981376
UNIVERSAL SAFETY RELAY 2PDT 120V
Technical Specifications
Parameters and characteristics for this part
| Specification | 2981376 |
|---|---|
| Coil Current | 9 mA |
| Coil Voltage | 120 V |
| Coil Voltage (Type) | AC, DC |
| Contact Form | Form, 2 Form C, C, 2, DPDT |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Mounting Type | DIN Rail |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 10 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
