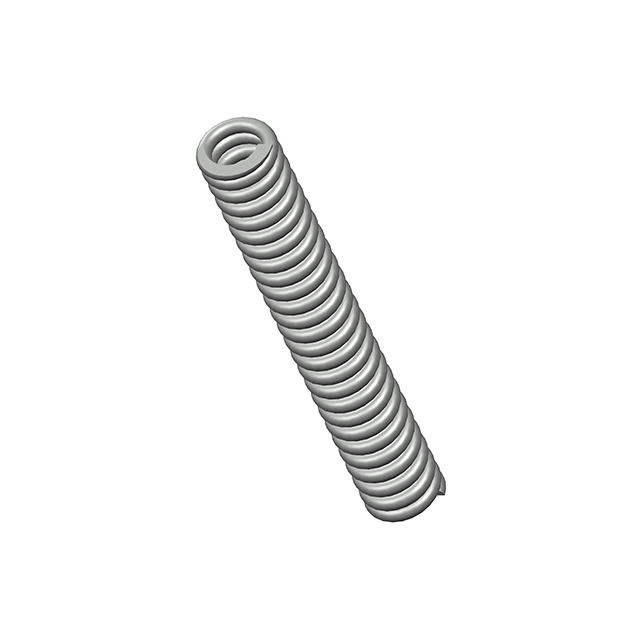

10636CS
ActiveCentury Spring Corp
COMP O= .593,L= 4.00,W= .113
10636CS
ActiveCentury Spring Corp
COMP O= .593,L= 4.00,W= .113
Description
General part information
10636CS
COMP O= .593,L= 4.00,W= .113
Technical Specifications
Parameters and characteristics for this part
| Specification | 10636CS |
|---|---|
| Diameter - Inside | 0.367 in |
| Diameter - Outside | 0.593 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 4 in |
| Material | Spring Steel |
| Rate (lbs/in) | 88 lbs/in |
| Type | Compression |
| Wire Diameter | 0.113 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
