16980-5PG-522

Active

Conxall/Switchcraft

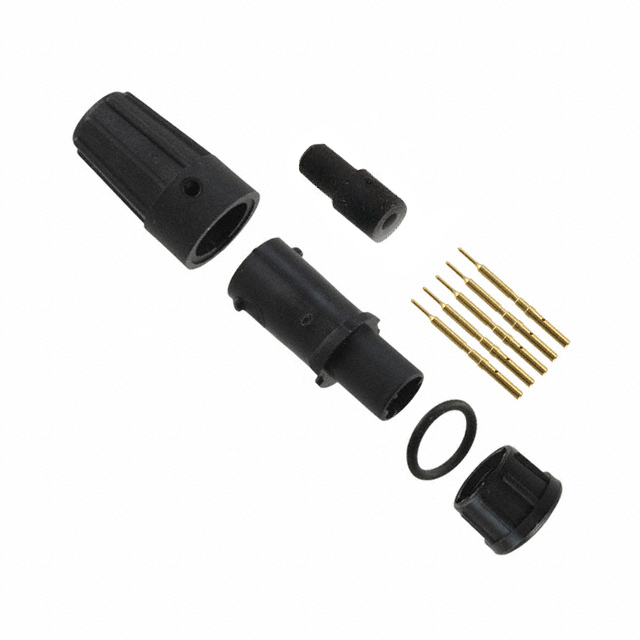

CONN PLUG MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16980-5PG-522	16980-5P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 in
Cable Opening [Min] [diameter]	0.22 in	0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.59 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN PLUG MALE 5POS GOLD CRIMP

Part	Mounting Type	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Color	Fastening Type	Features	Ingress Protection	Contact Material	Current Rating (Amps)	Voltage Rating	Orientation	Material Flammability Rating	Termination	Applications	Backshell Material, Plating	Contact Finish - Mating	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 16980-5PG-318	Free Hanging (In-Line)	Plastic	85 °C	-40 °C	Unshielded	Black	Bayonet Lock	Backshell	IP67 - Dust Tight, Waterproof	Copper Alloy	4 A	600 VAC	B	UL94 HB	Crimp	Data, Industrial, Instrumentation, Medical	Thermoplastic	Gold	Male Pins, Plug
Conxall/Switchcraft 16980-5PG-522	Free Hanging (In-Line)	Plastic	85 °C	-40 °C	Unshielded	Black	Bayonet Lock	Backshell	IP67 - Dust Tight, Waterproof	Copper Alloy	4 A	600 VAC	B	UL94 HB	Crimp	Data, Industrial, Instrumentation, Medical	Thermoplastic	Gold	Male Pins, Plug	5.84 mm	0.22 in	5.59 mm	0.23 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Crimp
