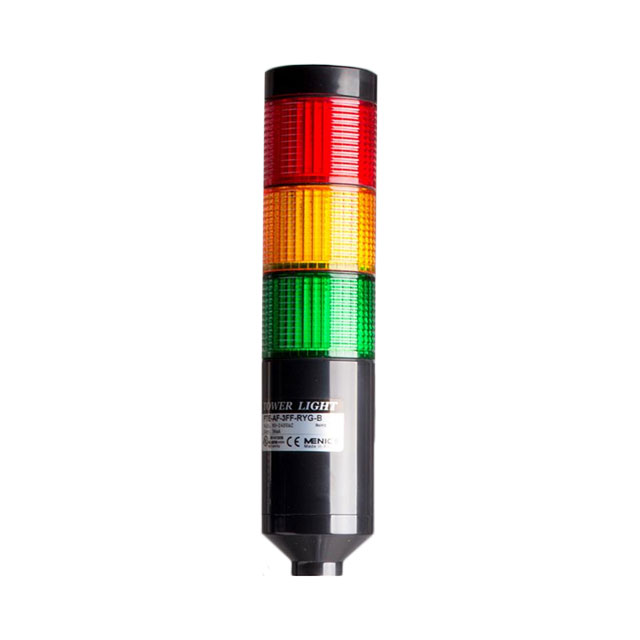

PTE-AF-3FF-RYG-B

Active

Menics

COMPLETE UNIT G/R/Y FLASH 3STACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMounting Options (Menics PTE, PTD, PTM Series)Datasheet

PTE-AF-3FF-RYG-B

Active

Menics

COMPLETE UNIT G/R/Y FLASH 3STACK

Deep-Dive with AI

DocumentsMounting Options (Menics PTE, PTD, PTM Series)Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 152.12

Description

General part information

PTE-AF Series

Stack Light Complete Unit Green, Red, Yellow LED Wire Leads

Documents

Technical documentation and resources

Mounting Options (Menics PTE, PTD, PTM Series)

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PTE-AF-3FF-RYG-B	PTE-AF Series

Function - Lighting	Steady, Flashing	Steady, Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Light Color	Red, Green, Yellow	Red, Green, Yellow, Blue, Clear
Number of Stacks	3	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Wire Leads	Wire Leads
Type	Complete Unit	Complete Unit
Voltage - Supply	-	24 VAC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	90 VAC	90 VAC

PTE-AF Series

COMPLETE UNIT G/R/Y FLASH 3STACK

Part	Type	Number of Stacks	Ingress Protection	Voltage - Supply	Function - Lighting	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Light Color	Voltage - Supply [Max]	Voltage - Supply [Min]
Menics PTE-AF-302-RYG-B	Complete Unit	3	IP65 - Dust Tight, Water Resistant	24 VAC	Flashing, Steady	-15 °C	40 °C	Wire Leads	Green, Red, Yellow
Menics PTE-AF-4FF-RYGB-B	Complete Unit	4	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Blue, Green, Red, Yellow	240 VAC	90 VAC
Menics PTE-AF-102-B-B	Complete Unit	1	IP65 - Dust Tight, Water Resistant	24 VAC	Flashing, Steady	-15 °C	40 °C	Wire Leads
Menics PTE-AF-1FF-R-B	Complete Unit	1	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Red	240 VAC	90 VAC
Menics PTE-AF-1FF-C-B	Complete Unit	1	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Clear	240 VAC	90 VAC
Menics PTE-AF-2FF-RG-B	Complete Unit	2	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Green, Red	240 VAC	90 VAC
Menics PTE-AF-1FF-Y-B	Complete Unit	1	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Yellow	240 VAC	90 VAC
Menics PTE-AF-102-C-B	Complete Unit	1	IP65 - Dust Tight, Water Resistant	24 VAC	Flashing, Steady	-15 °C	40 °C	Wire Leads	Clear
Menics PTE-AF-502-RYGBC-B	Complete Unit	5	IP65 - Dust Tight, Water Resistant	24 VAC	Flashing, Steady	-15 °C	40 °C	Wire Leads	Blue, Clear, Green, Red, Yellow
Menics PTE-AF-2FF-RY-B	Complete Unit	2	IP65 - Dust Tight, Water Resistant		Flashing, Steady	-15 °C	40 °C	Wire Leads	Red, Yellow	240 VAC	90 VAC
