1708107
ActivePhoenix Contact

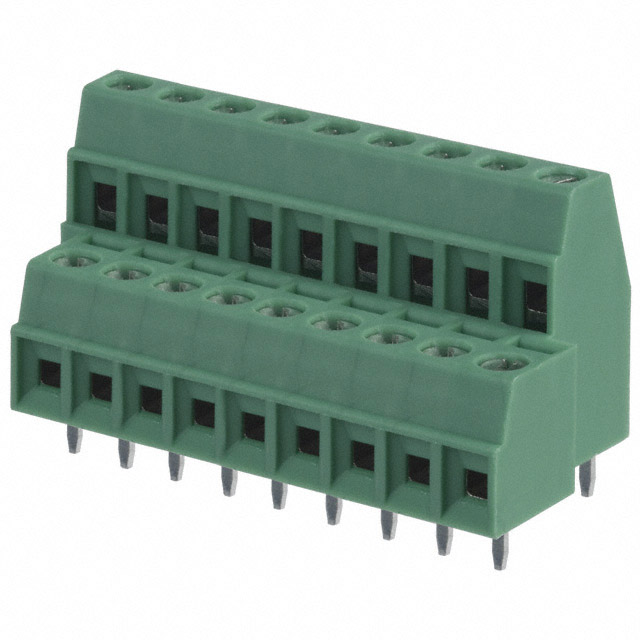

CONN PC TERMINAL BLOCK 18 POS 3.81MM SOLDER ST THRU-HOLE 8A CARDBOARD
1708107
ActivePhoenix Contact
CONN PC TERMINAL BLOCK 18 POS 3.81MM SOLDER ST THRU-HOLE 8A CARDBOARD
Description
General part information
1708107
9 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1708107 |
|---|---|
| Color | Green |
| Current | 10 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Pitch | 0.15 in |
| Positions Per Level | 9 |
| Screw Thread | M2 |
| Torque - Screw (Maximum) | 0.25 Nm |
| Torque - Screw (Minimum) | 0.22 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
