LA47202P-E
ActiveON Semiconductor
FOUR-CH BTL POWER AMPLIFIER
LA47202P-E
ActiveON Semiconductor
FOUR-CH BTL POWER AMPLIFIER
Description
General part information
LA47202P-E
Amplifier IC 4-Channel (Quad) Class AB 25-HZIP
Technical Specifications
Parameters and characteristics for this part
| Specification | LA47202P-E |
|---|---|
| Channels | 4 |
| Load Impedance | 4 Ohm |
| Maximum Output Power (per Channel) | 47 W |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 4-Channel (Quad) |

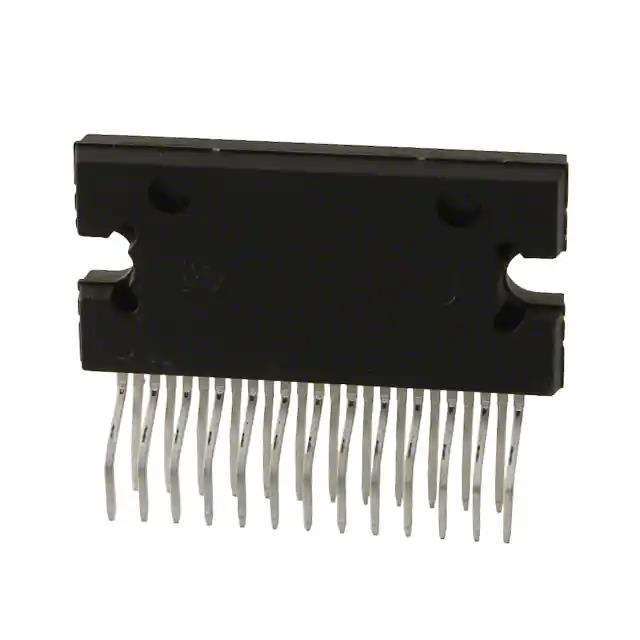

| Package / Case | 25-SSIP Formed Leads |
| Package Name | 25-HZIP |
| Type | Class AB |
| Voltage - Supply (Maximum) | 26 V |
| Voltage - Supply (Minimum) | 14.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
