CTDO5022PF-474
ActiveCentral Technologies

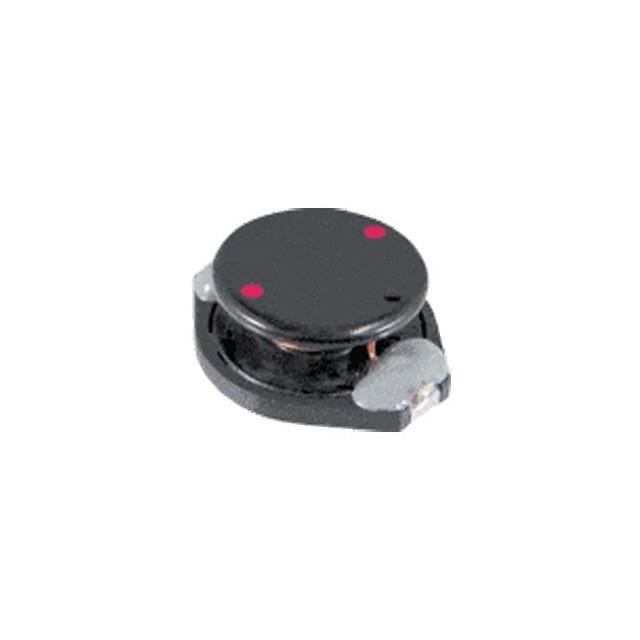

470UH SMD POWER INDUCTOR
CTDO5022PF-474
ActiveCentral Technologies
470UH SMD POWER INDUCTOR
Description
General part information
CTDO5022PF-474
470 µH Unshielded Wirewound Inductor 820 mA 850mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDO5022PF-474 |
|---|---|
| Current - Saturation (Isat) | 1.4 A |
| Current Rating | 820 mA |
| DC Resistance (DCR) | 850 mOhm |
| Frequency - Self Resonant | 3 MHz |
| Height - Seated (Max) | 0.295 in |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.718 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
