NMP-8325
ActiveQuest Technology International Inc.
MODULAR PLUGS 100 PACK CAT5E RJ
NMP-8325
ActiveQuest Technology International Inc.
MODULAR PLUGS 100 PACK CAT5E RJ
Description
General part information
NMP-8325

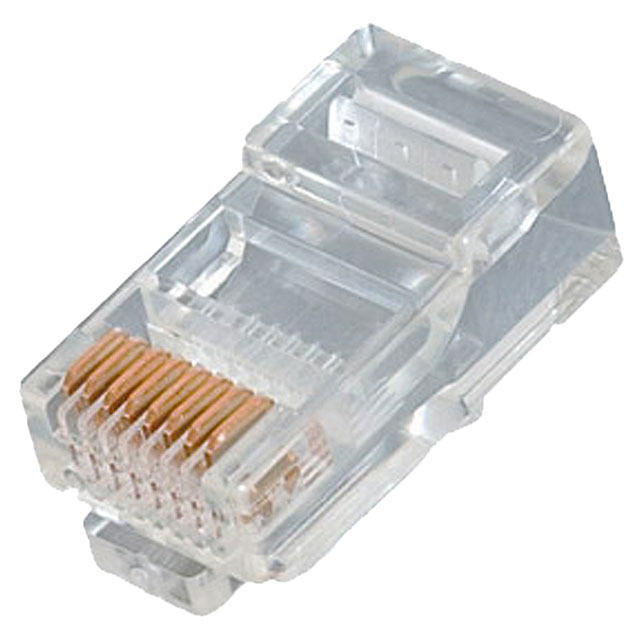

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | NMP-8325 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Clear |
| Connector Type | Ethernet, RJ45, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Housing Material | PC, Polycarbonate |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
