Description
General part information
09692825140

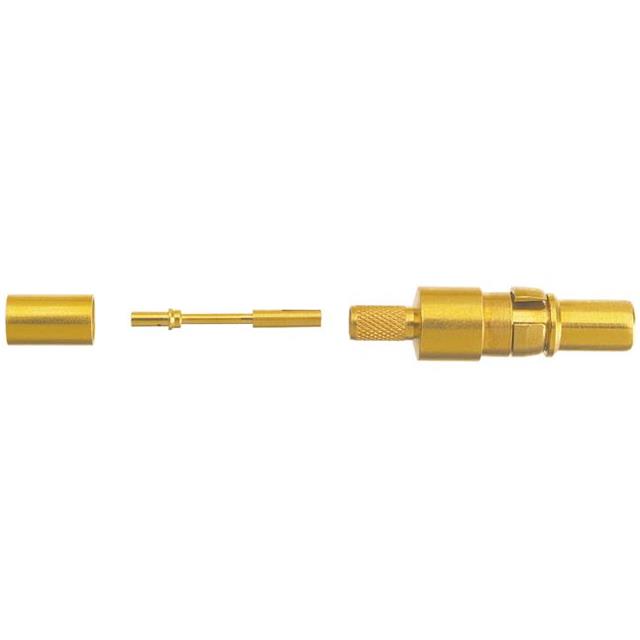

D-Sub Contact Coax Pin, Socket Center Gold RG-174, 188A, 316 Crimp Machined
Technical Specifications
Parameters and characteristics for this part
| Specification | 09692825140 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness (Inner) | 51.2 µin |
| Contact Finish Thickness (Outer) | 31.5 µin |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Contact Type | Coax Pin, Socket Center |
| Termination Finish | Gold |
| Termination Finish Thickness (Inner) | 51.2 µin |
| Termination Finish Thickness (Outer) | 8 µin |
| Type | Coaxial |
| Wire Gauge | 188A, RG-174, 316 |
