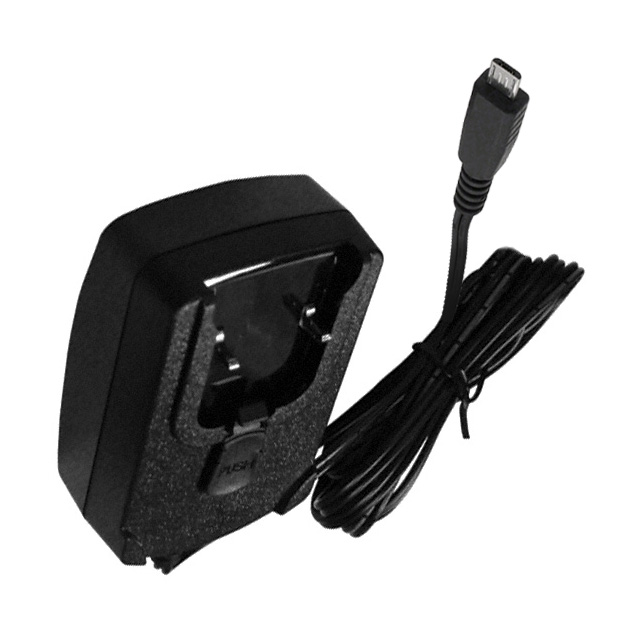

PSM08R-050(M)
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 8W
PSM08R-050(M)
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 8W
Description
General part information
PSM08R-050(M)
5V 8 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSM08R-050(M) |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | C-Tick, cULus, CCC |
| Cord Length | 70.9 in |
| Current - Output (Max) | 1.6 A |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption (Max) | 300 mW |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB Micro |
| Power (Watts) | 8 W |
| Region Utilized | International |
| Size / Dimension Height | 1.17 in |
| Size / Dimension Length | 2.82 in |
| Size / Dimension Width | 1.77 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5 VDC |
| Weight | 0.282 lb |
