Description
General part information

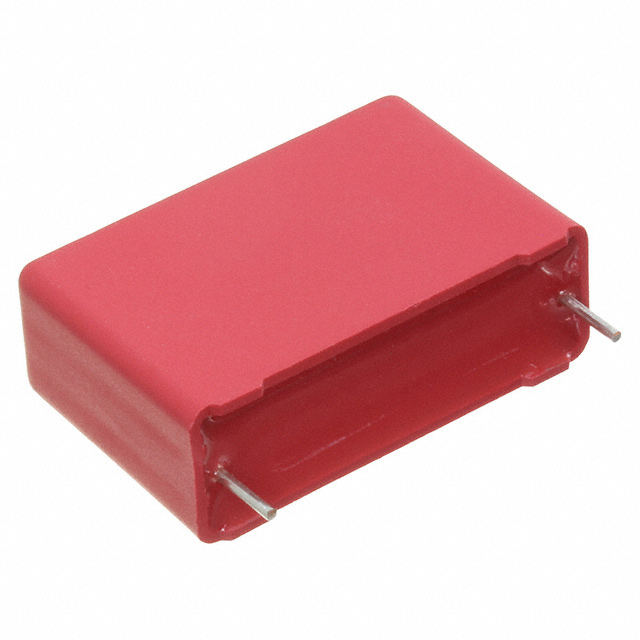

MKP4F042206B00JSSD
2.2 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP4F042206B00JSSD |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 2.2 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.827 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
