9L26026 008H100
ActiveBelden Inc.
CBL RIBN 26COND 0.05 GRAY 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9L26026 008H100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 7 Strands |
| Current Rating (Amps) | 1.5 A |
| First Conductor Mark | Blue |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 26 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.99 mm |
| Ribbon Thickness | 0.039 in |
| Ribbon Width | 1.3 " |
| Ribbon Width | 33.02 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 4.88 | |
| 200 | $ 4.43 | |||
| 300 | $ 4.19 | |||
| 500 | $ 3.91 | |||
| 700 | $ 3.73 | |||
| 1000 | $ 3.55 | |||
| 2500 | $ 3.39 | |||
Description
General part information
9L26026 Series

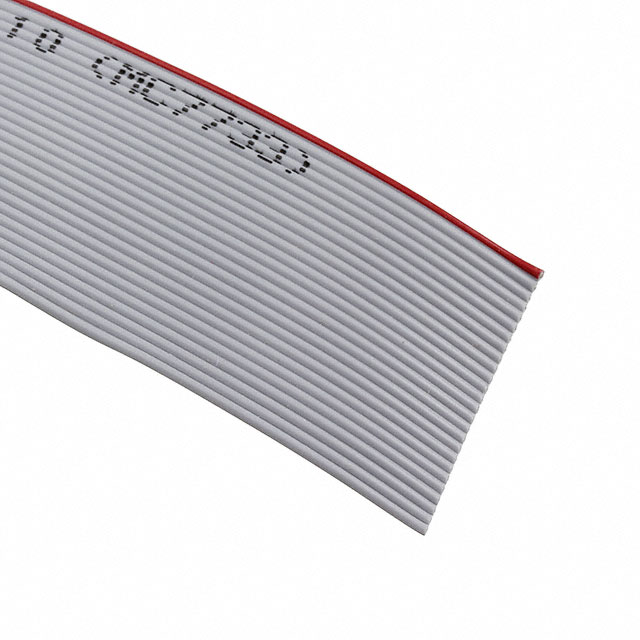

Flat Ribbon Cable Gray 26 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
