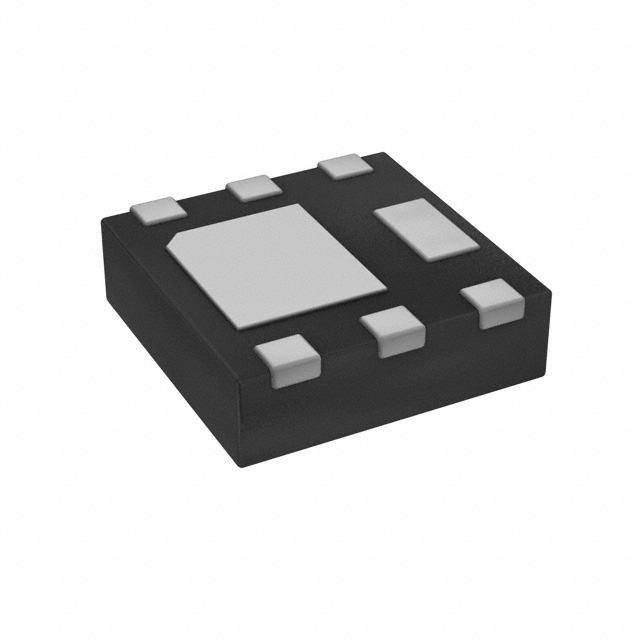

DMN1004UFDF-7
ActiveDiodes Inc
POWER MOSFET, N CHANNEL, 12 V, 15 A, 0.0041 OHM, U-DFN2020, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DMN1004UFDF-7
ActiveDiodes Inc
POWER MOSFET, N CHANNEL, 12 V, 15 A, 0.0041 OHM, U-DFN2020, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN1004UFDF-7 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 15 A |
| Drain to Source Voltage (Vdss) | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 2.5 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 2385 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-UDFN Exposed Pad |
| Power Dissipation (Max) | 2.1 W |
| Rds On (Max) @ Id, Vgs | 4.8 mOhm |
| Supplier Device Package | U-DFN2020-6 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.15 | |||
| 30000 | $ 0.15 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.72 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
Description
General part information
DMN1004UFDF Series
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
