AM1/4SS-1205S-NZ

Unknown

aimtec

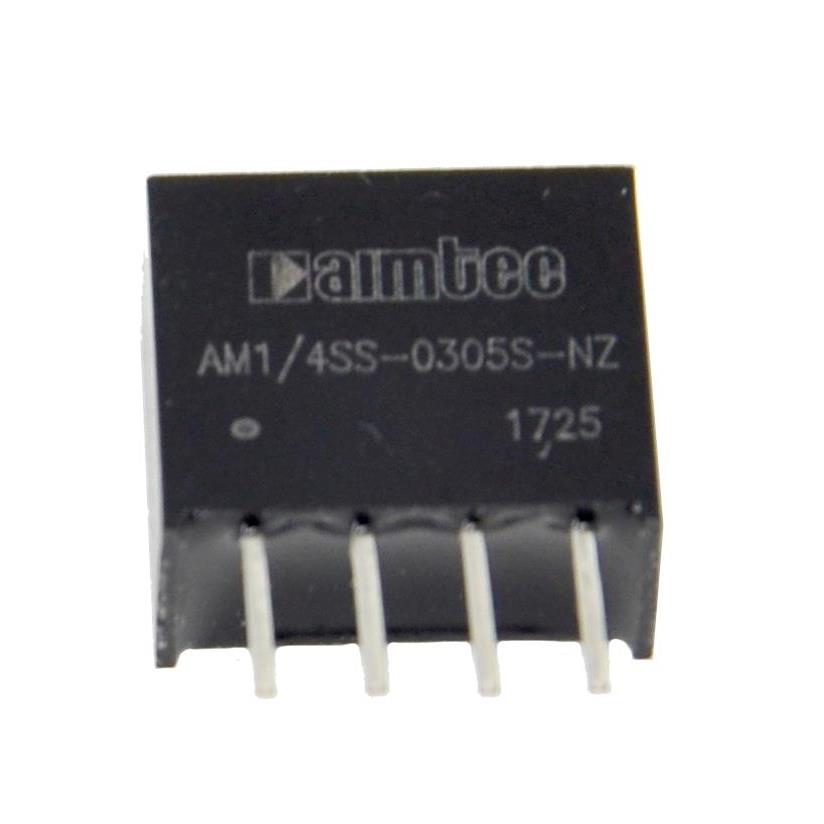

DC DC CONVERTER 5V 250MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1/4SS-1205S-NZ

Unknown

aimtec

DC DC CONVERTER 5V 250MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1/4SS-1205S-NZ	AM1/4S Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CE
Current - Output (Max) [Max]	50 mA	10.4 - 75.7 mA
Efficiency	66 %	53 - 77 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SIP Module	4-SIP Module
Power (Watts)	250 mW	0.25 - 250 mW
Size / Dimension [x]	11.6 mm	11.6 - 11.7 mm
Size / Dimension [x]	0.46 in	0.46 in
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 "	0.24 "
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.2 mm	9.7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	5.5 - 52.8 V
Voltage - Input (Min) [Min]	10.8 V	4.5 - 43.2 V
Voltage - Isolation	1.5 kV	1.5 - 3000 V
Voltage - Output 1	5 V	3.3 - 24 V

AM1/4S Series

DC DC CONVERTER 12V 250MW

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Approval Agency	Type	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Voltage - Isolation	Number of Outputs
aimtec AM1/4S-0512SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	12 V	Through Hole	76 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	20.83 mA	0.25 mW	1000 V	1
aimtec AM1/4S-4805SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	43.2 V	52.8 V	5 V	Through Hole	53 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	50 mA	250 mW	1000 V	1
aimtec AM1/4S-1215SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	15 V	Through Hole	67 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	16.6 mA	0.25 mW	1000 V	1
aimtec AM1/4S-1215SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	15 V	Through Hole	67 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	16.6 mA	0.25 mW	3000 V	1
aimtec AM1/4S-2412SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	21.6 V	26.4 V	12 V	Through Hole	56 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module		250 mW	3000 V	1
aimtec AM1/4S-0518SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	18 V	Through Hole	72 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.88 mA	0.25 mW	3000 V	1
aimtec AM1/4S-2407SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	21.6 V	26.4 V	7.2 V	Through Hole		85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	34.7 mA	0.25 mW	3000 V	1
aimtec AM1/4S-0518SZ	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	4.5 V	5.5 V	18 V	Through Hole	72 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.88 mA	0.25 mW	1000 V	1
aimtec AM1/4S-1209SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	9 V	Through Hole	64 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	27.7 mA	0.25 mW	3000 V	1
aimtec AM1/4S-1218SH30Z	0.46 in	0.4 "	6 mm	0.24 "	11.7 mm	9.7 mm	10.8 V	13.2 V	18 V	Through Hole	65 %	85 °C	-40 °C	ITE (Commercial)	CE	Isolated Module	4-SIP Module	13.8 mA	0.25 mW	3000 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.71
		5	$ 6.58
		10	$ 6.44
		25	$ 6.32
		38	$ 6.19
		76	$ 6.07
		152	$ 5.94

Description

General part information

AM1/4S Series

Isolated Module DC DC Converter 1 Output 5V 50mA 10.8V - 13.2V Input
