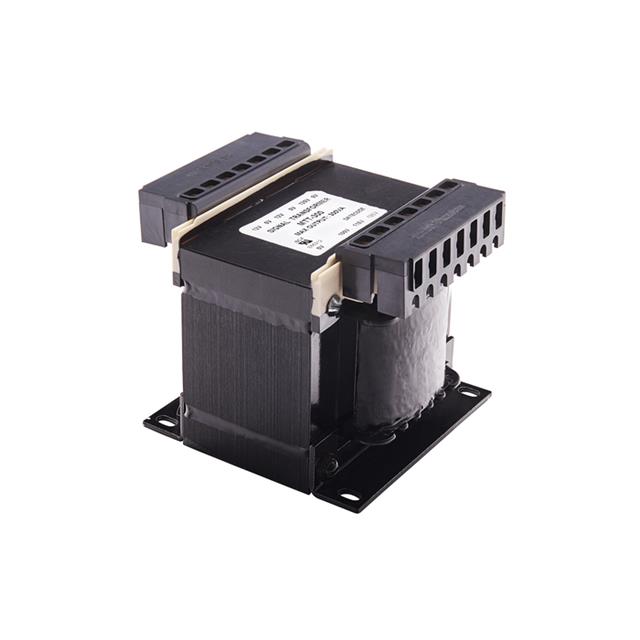

DMTT-650
ActiveSignal Transformer
PWR XFMR LAMINATED 650VA CHAS MT
DMTT-650
ActiveSignal Transformer
PWR XFMR LAMINATED 650VA CHAS MT
Description
General part information
DMTT-650
PWR XFMR LAMINATED 650VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | DMTT-650 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 54 A |
| Current - Output (Max) Series | 27 A |
| Height - Seated (Max) | 117.8 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 650 VA |
| Primary Winding(s) | Dual, Multiple Taps |
| Secondary Winding(s) | Triple |
| Size / Dimension Length | 133.3 mm |
| Size / Dimension Width | 5.5 in |
| Termination Style | Terminal Block |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 220V, 480V, 420V, 240V, 200V, 440V, 400V, 460V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 20 lbs |
