71M6533-DB
ActiveAnalog Devices Inc./Maxim Integrated
BOARD DEMO 71M6533
Deep-Dive with AI
Search across all available documentation for this part.
71M6533-DB
ActiveAnalog Devices Inc./Maxim Integrated
BOARD DEMO 71M6533
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71M6533-DB | 71M6533 Series |
|---|---|---|
| Current - Supply | - | 10 mA |
| Embedded | True | True |
| Function | Energy/Power Meter | Energy/Power Meter |
| Input Impedance | - | 90 kOhm |
| Input Impedance | - | 40 kOhm |
| Measurement Error | - | 0.1 % |
| Meter Type | - | 3 Phase |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 100-LQFP |
| Primary Attributes | Three Phase Power Meter | Three Phase Power Meter |
| Supplied Contents | Cable(s), Power Supply, Board(s) | Cable(s), Power Supply, Board(s) |
| Supplier Device Package | - | 100-LQFP (14x14) |
| Type | Power Management | Power Management |
| Utilized IC / Part | 71M6533 | 71M6533 |
| Voltage - I/O High | - | 2 V |
| Voltage - I/O Low | - | 0.8 V |
| Voltage - Supply | - | 3 V |
| Voltage - Supply | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
71M6533 Series
BOARD DEMO 71M6533
| Part | Primary Attributes | Utilized IC / Part | Supplied Contents | Function | Embedded | Type | Input Impedance [Max] | Input Impedance [Min] | Voltage - I/O High | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Measurement Error | Mounting Type | Meter Type | Current - Supply | Voltage - I/O Low | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 71M6533-DB | Three Phase Power Meter | 71M6533 | Board(s), Cable(s), Power Supply | Energy/Power Meter | Power Management | |||||||||||||||
Analog Devices Inc./Maxim Integrated 71M6533G-IGTR/F | 90 kOhm | 40 kOhm | 2 V | 100-LQFP | 3 V | 3.6 V | 85 °C | -40 °C | 0.1 % | Surface Mount | 3 Phase | 10 mA | 0.8 V | 100-LQFP (14x14) | ||||||
Analog Devices Inc./Maxim Integrated 71M6533-IGT/F | 90 kOhm | 40 kOhm | 2 V | 100-LQFP | 3 V | 3.6 V | 85 °C | -40 °C | 0.1 % | Surface Mount | 3 Phase | 10 mA | 0.8 V | 100-LQFP (14x14) | ||||||
Analog Devices Inc./Maxim Integrated 71M6533-IGTR/F | 90 kOhm | 40 kOhm | 2 V | 100-LQFP | 3 V | 3.6 V | 85 °C | -40 °C | 0.1 % | Surface Mount | 3 Phase | 10 mA | 0.8 V | 100-LQFP (14x14) | ||||||
Analog Devices Inc./Maxim Integrated 71M6533H-IGT/F | 90 kOhm | 40 kOhm | 2 V | 100-LQFP | 3 V | 3.6 V | 85 °C | -40 °C | 0.1 % | Surface Mount | 3 Phase | 10 mA | 0.8 V | 100-LQFP (14x14) | ||||||
Analog Devices Inc./Maxim Integrated 71M6533H-IGTR/F | 90 kOhm | 40 kOhm | 2 V | 100-LQFP | 3 V | 3.6 V | 85 °C | -40 °C | 0.1 % | Surface Mount | 3 Phase | 10 mA | 0.8 V | 100-LQFP (14x14) |
Description
General part information
71M6533 Series

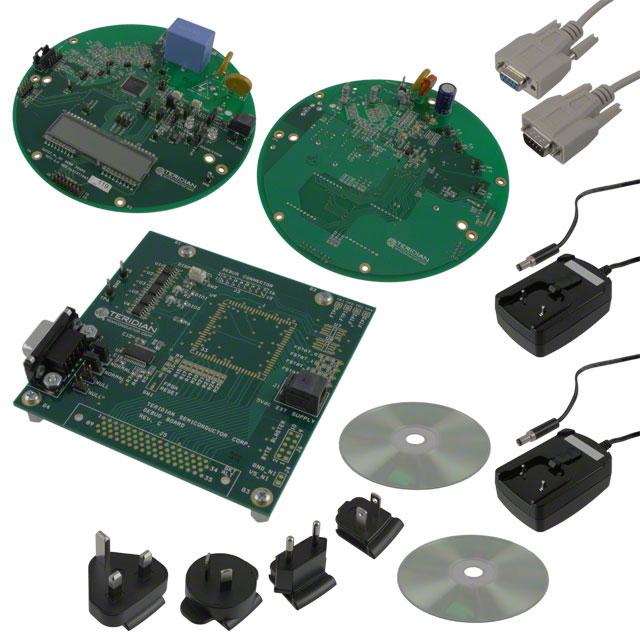

71M6533 Energy/Power Meter Power Management Evaluation Board
