Description
General part information

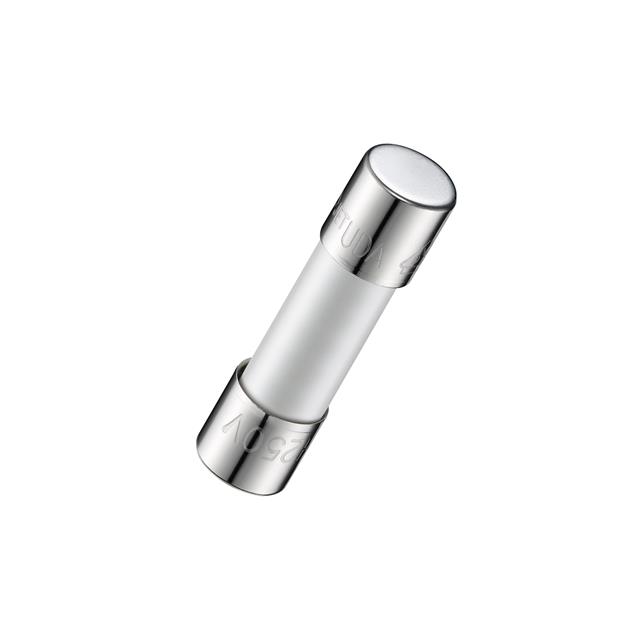

TUC UDA 16A 250V (PF)
16 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | TUC UDA 16A 250V (PF) |
|---|---|
| Approval Agency | cURus, TUV |
| Breaking Capacity | 500 A |
| Current Rating | 16 A |
| DC Cold Resistance | 0.003 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 1086.6 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
