LSA28-S1S1-S60
ActiveConductRF

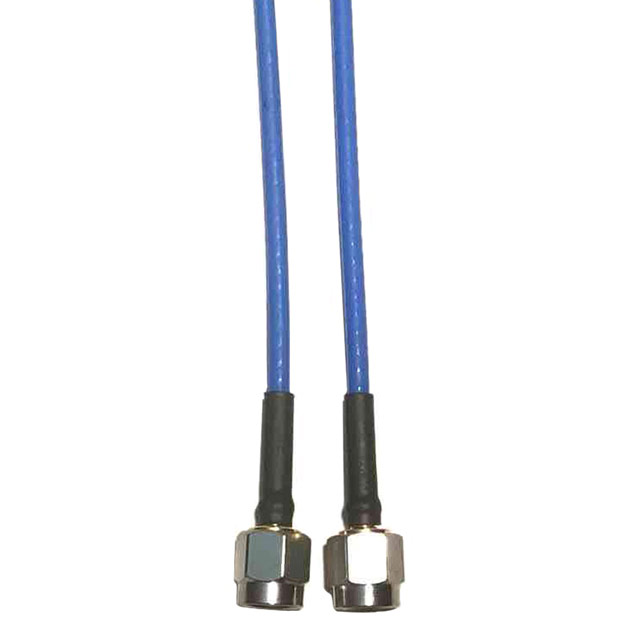

CBL ASSY SMA PLUG TO PLUG 5'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSA28-S1S1-S60
ActiveConductRF
CBL ASSY SMA PLUG TO PLUG 5'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LSA28-S1S1-S60 | LSA28 Series |
|---|---|---|
| 1st Connector | SMA Plug | SMA Jack, Right Angle, MCX Plug, SMA Plug, MMCX Plug |
| 1st Connector Mounting Feature | - | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Panel Mount, Free Hanging (In-Line) |
| 1st Contact Gender | Male | Female, Male |
| 2nd Connector | SMA Plug | SMA Plug, MCX Plug, SMA Plug, Right Angle, MMCX Plug, MMCX Plug, Right Angle, MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male |
| Cable Type | 2.18mm OD Coaxial Cable | 2.18mm OD Coaxial Cable |
| Cable Type | - | 0.085 " |
| Color | Blue | Blue |
| Connector Impedance | 50 Ohms | 50 Ohms |
| Features | Shielded | Shielded |
| Frequency - Max [Max] | 18 GHz | 18 - 6000 GHz |
| Length | 5 ft | 4 - 5 ft |
| Length | 1.5 m | 1.5 - 1200 mm |
| Length | 5 ' | 5 - 48 " |
| Length | - | 406.4 - 457.2 mm |
| Length | - | 16 in |
| Length | - | 457.2 mm |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMA to SMA | SMA to SMA, MCX to MCX, MMCX to MMCX, SMA to MMCX, SMA to MCX |
LSA28 Series
CBL ASSY SMA JACK TO PLUG 16"
| Part | Connector Impedance | Overall Impedance | Cable Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | 1st Connector | 1st Connector Mounting Type | 2nd Connector | 2nd Connector Mounting Type | Color | 1st Contact Gender | Length [x] | Length [x] | 2nd Contact Gender | 1st Connector Mounting Feature | Frequency - Max [Max] | Style | Length | Length | Cable Type | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF LSA28-S1S3-S16 | 50 Ohms | 50 Ohms | 2.18mm OD Coaxial Cable | Shielded | -55 °C | 125 °C | SMA Jack | Panel Mount | SMA Plug | Free Hanging (In-Line) | Blue | Female | 406.4 mm | 16 in | Male | Bulkhead - Front Side Nut | 18 GHz | SMA to SMA | |||||
ConductRF LSA28-M1M2-S12 | 50 Ohms | 50 Ohms | Shielded | -55 °C | 125 °C | MCX Plug, Right Angle | Free Hanging (In-Line) | MCX Plug | Free Hanging (In-Line) | Blue | Male | Male | 6000 MHz | MCX to MCX | 12 " | 304.8 mm | 0.085 " | ||||||
ConductRF LSA28-S2S2-S24 | 50 Ohms | 50 Ohms | 2.18mm OD Coaxial Cable | Shielded | -55 °C | 125 °C | Right Angle, SMA Plug | Free Hanging (In-Line) | SMA Plug, Right Angle | Free Hanging (In-Line) | Blue | Male | Male | 18 GHz | SMA to SMA | 24 " | 609.6 mm | ||||||
ConductRF LSA28-1M1M-S06 | 50 Ohms | 50 Ohms | Shielded | -55 °C | 125 °C | MMCX Plug | Free Hanging (In-Line) | MMCX Plug | Free Hanging (In-Line) | Blue | Male | Male | 6000 MHz | MMCX to MMCX | 6 in | 152.4 mm | 0.085 " | ||||||
ConductRF LSA28-S1S2-S24 | 50 Ohms | 50 Ohms | 2.18mm OD Coaxial Cable | Shielded | -55 °C | 125 °C | SMA Plug | Free Hanging (In-Line) | SMA Plug, Right Angle | Free Hanging (In-Line) | Blue | Male | Male | 18 GHz | SMA to SMA | 24 " | 609.6 mm | ||||||
ConductRF LSA28-S2S2-S12 | 50 Ohms | 50 Ohms | 2.18mm OD Coaxial Cable | Shielded | -55 °C | 125 °C | Right Angle, SMA Plug | Free Hanging (In-Line) | SMA Plug, Right Angle | Free Hanging (In-Line) | Blue | Male | Male | 18 GHz | SMA to SMA | 12 " | 304.8 mm | ||||||
ConductRF LSA28-S11M-S12 | 50 Ohms | 50 Ohms | Shielded | -55 °C | 125 °C | SMA Plug | Free Hanging (In-Line) | MMCX Plug | Free Hanging (In-Line) | Blue | Male | Male | 6000 MHz | SMA to MMCX | 12 " | 304.8 mm | 0.085 " | ||||||
ConductRF LSA28-S2M1-S18 | 50 Ohms | 50 Ohms | 2.18mm OD Coaxial Cable | Shielded | -55 °C | 125 °C | MCX Plug | Free Hanging (In-Line) | SMA Plug, Right Angle | Free Hanging (In-Line) | Blue | Male | 457.2 mm | Male | 18 GHz | SMA to MCX | 457.2 mm | ||||||
ConductRF LSA28-S12M-S18 | 50 Ohms | 50 Ohms | Shielded | -55 °C | 125 °C | SMA Plug | Free Hanging (In-Line) | MMCX Plug, Right Angle | Free Hanging (In-Line) | Blue | Male | 457.2 mm | Male | 6000 MHz | SMA to MMCX | 0.085 " | 457.2 mm | ||||||
ConductRF LSA28-1M1M-S12 | 50 Ohms | 50 Ohms | Shielded | -55 °C | 125 °C | MMCX Plug | Free Hanging (In-Line) | MMCX Plug | Free Hanging (In-Line) | Blue | Male | Male | 6000 MHz | MMCX to MMCX | 12 " | 304.8 mm | 0.085 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.66 | |
| 5 | $ 43.92 | |||
| 10 | $ 41.48 | |||
| 25 | $ 37.33 | |||
| 50 | $ 33.94 | |||
| 100 | $ 32.47 | |||
| 250 | $ 31.11 | |||
| 500 | $ 29.86 | |||
| 1000 | $ 28.72 | |||
Description
General part information
LSA28 Series
Cable Assembly Coaxial SMA to SMA 2.18mm OD Coaxial Cable 60.0" (1.5m) 5.0'
