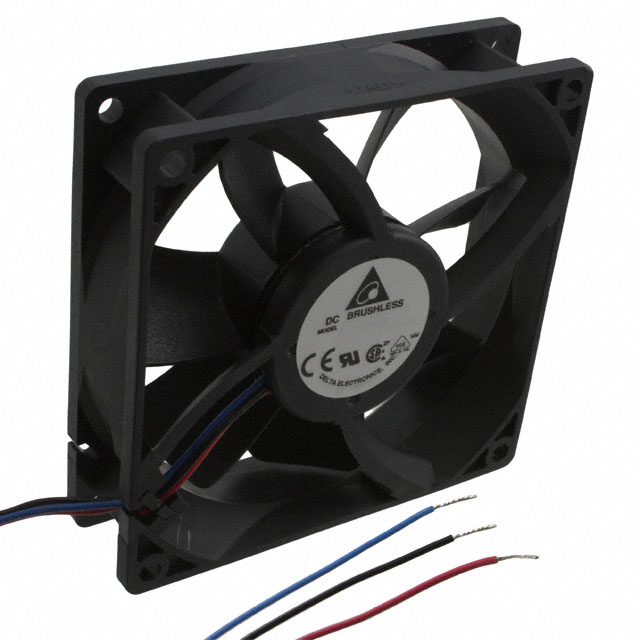

AFB0912SH-TZUG
ActiveDelta Electronics
FAN AXIAL 92X25.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0912SH-TZUG
ActiveDelta Electronics
FAN AXIAL 92X25.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0912SH-TZUG |
|---|---|
| Air Flow | 102.6 CFM |
| Air Flow | 2.87 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 750 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 53 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 9 W |
| RPM | 4800 RPM |
| Static Pressure | 131 Pa |
| Static Pressure | 0.526 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 12.6 VDC |
| Voltage Range [Min] | 5 VDC |
| Weight | 121.11 g |
| Weight | 0.267 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.84 | |
| 10 | $ 21.25 | |||
| 25 | $ 19.13 | |||
| 72 | $ 17.53 | |||
| 144 | $ 16.47 | |||
| 288 | $ 14.34 | |||
| 504 | $ 13.81 | |||
Description
General part information
AFB0912SH-TZUG
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 102.6 CFM (2.87m³/min) 3 Wire Leads
