07199-SP036

Active

Qualtek

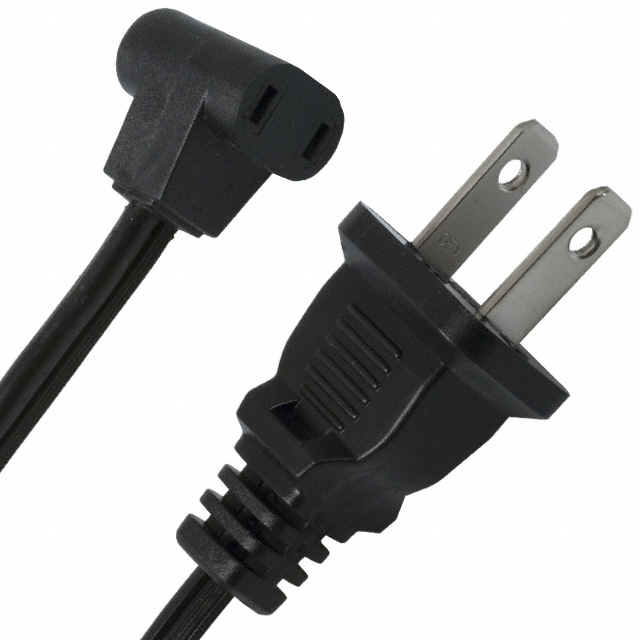

POWER CORD W/PLUG FAN T-TYPE 36"

Search across all available documentation for this part.

Active

Qualtek

POWER CORD W/PLUG FAN T-TYPE 36"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 2.18

General part information

Fan Power Cord Fan Terminal Receptacle, T-Style 36.0" (914.4mm) NEMA 1-15 Plug

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	07199-SP036	07199 Series

1st Connector	Fan Terminal Receptacle, T-Style	Fan Terminal Receptacle, T-Style
2nd Connector	NEMA 1-15 Plug	Open Wires, NEMA 1-15 Plug
Approval Agency Marking	UL, cUL	UL, cUL
Cord Type	SPT-1	SPT-1
Current Rating (Amps)	10 A	10 A
Fits Terminal Size [x]	4.5	4.5
Fits Terminal Size [y]	2.5	2.5
Length	91.44 cm	1.02 - 1270 m
Length	36 in	36 - 80 "
Length	-	2.44 - 609.6 mm
Length	-	12 - 96 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Male Plug	Female Receptacle to Cable, Female Receptacle to Male Plug
Voltage Rating	125 VDC	125 VDC
Wire Gauge	18 AWG	18 AWG

CORD POWER FAN T-TYPE 80"

Part	Length	Length	Voltage Rating	Current Rating (Amps)	Number of Conductors	Operating Temperature	Style	2nd Connector	Approval Agency Marking	Fits Terminal Size [y]	Fits Terminal Size [x]	Wire Gauge	1st Connector	Cord Type	Length [x]	Length [x]
Qualtek 07199-80	2.03 m	80 "	125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1
Qualtek 07199-SP036	91.44 cm	36 in	125 VDC	10 A	2	105 C	Female Receptacle to Male Plug	NEMA 1-15 Plug	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1
Qualtek 07199-36	91.44 cm	36 in	125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1
Qualtek 07199-24			125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1	609.6 mm	24 in
Qualtek 07199-12	304.8 mm		125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1		12 in
Qualtek 07199-40	1.02 m	40 in	125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1
Qualtek 07199-96			125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1	2.44 m	96 in
Qualtek 07199-SP024			125 VDC	10 A	2	105 C	Female Receptacle to Male Plug	NEMA 1-15 Plug	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1	609.6 mm	24 in
Qualtek 07199-50	1270 mm	50 in	125 VDC	10 A	2	105 C	Female Receptacle to Cable	Open Wires	cUL, UL	2.5	4.5	18 AWG	Fan Terminal Receptacle, T-Style	SPT-1
