XG2A-2001
ActiveOmron Electronics Inc-EMC Div

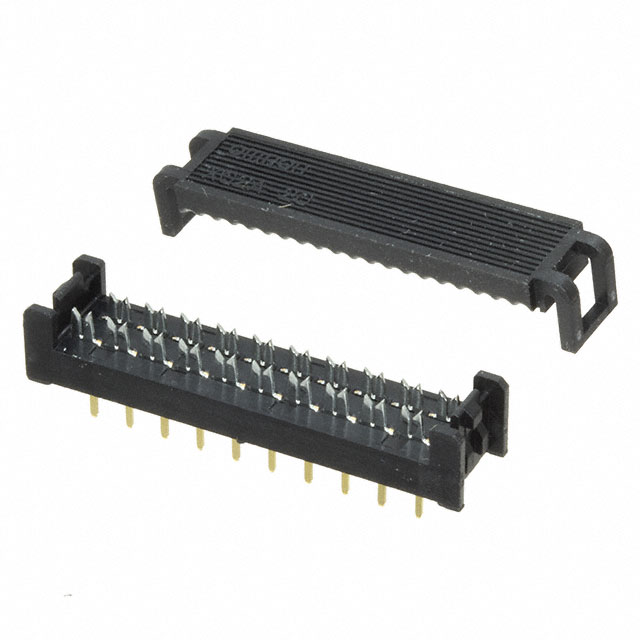

CONN DIP HDR IDC 20P 28AWG VERT
Deep-Dive with AI
Search across all available documentation for this part.
XG2A-2001
ActiveOmron Electronics Inc-EMC Div
CONN DIP HDR IDC 20P 28AWG VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XG2A-2001 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
XG2A Series
| Part | Color | Number of Positions Loaded | Connector Type | Features | Mounting Type | Number of Rows | Board-Side Pitch | Board-Side Pitch | Row Spacing [x] | Row Spacing | Cable Termination | Cable Pitch | Cable Pitch | Wire Gauge | Number of Positions | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 40 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 34 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 60 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 14 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 60 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 20 | Tin |
Omron Electronics Inc-EMC Div | Black | All | DIP Header Ribbon Cable | Feed Through | Through Hole | 2 | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | IDC | 1.27 mm | 0.05 in | 28 AWG | 30 | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.44 | |
| 10 | $ 3.40 | |||
| 100 | $ 2.63 | |||
| 500 | $ 2.22 | |||
| 1000 | $ 2.16 | |||
Description
General part information
XG2A Series
20 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG Through Hole
Documents
Technical documentation and resources
