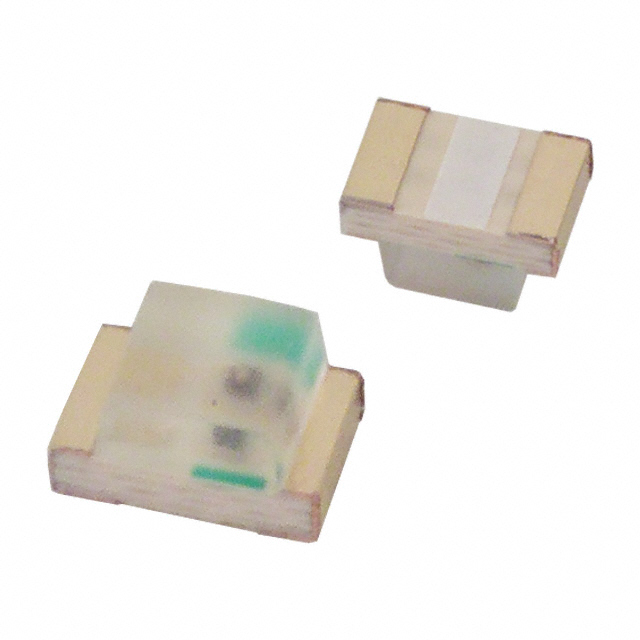

LTST-C170CKT

Obsolete

Diodes Inc

LED RED CLEAR SMD

Search across all available documentation for this part.

Obsolete

Diodes Inc

LED RED CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Height (Max) [Max] [z]	Configuration	Wavelength - Dominant	Lens Color	Voltage - Forward (Vf) (Typ)	Package / Case	Mounting Type	Viewing Angle	Millicandela Rating	Lens Transparency	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Color	Wavelength - Peak
Diodes Inc LTST-C170CKT	Rectangle with Flat Top	1.1 mm	Standard	638 nm	Colorless	1.8 V	0805	Surface Mount	130 °	10 mcd	Clear	10 mA	2 mm	1.25 mm	1.25 mm	1.4 mm	Red	660 nm
Diodes Inc LTST-C170KGKT	Rectangle with Flat Top	1.1 mm	Standard	571 nm	Colorless	2 V	0805	Surface Mount	130 °	35 mcd	Clear	20 mA	2 mm	1.25 mm	1.25 mm	1.4 mm	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 638nm LED Indication - Discrete 1.8V 0805 (2012 Metric)

Technical documentation and resources
