SC600204-1
ActiveDB Unlimited

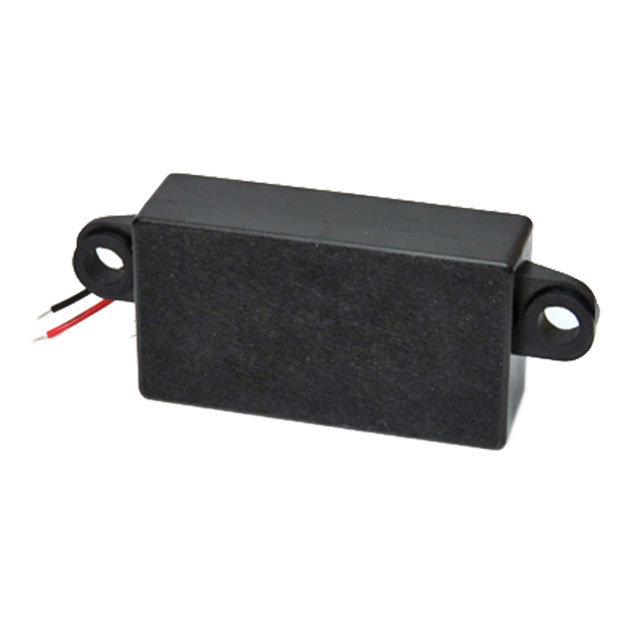

SPEAKER 4OHM 2W TOP PORT 100DB
SC600204-1
ActiveDB Unlimited
SPEAKER 4OHM 2W TOP PORT 100DB
Description
General part information
SC600204-1
4 Ohms General Purpose Speaker 2 W 200 Hz ~ 20 kHz Top Rectangle
Technical Specifications
Parameters and characteristics for this part
| Specification | SC600204-1 |
|---|---|
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 250 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 200 Hz |
| Height - Seated (Max) | 0.72 in |
| Impedance | 4 Ohms |
| Material - Cone | Cloth |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 4 VA |
| Power - Rated | 2 W |
| Shape | Rectangle |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
