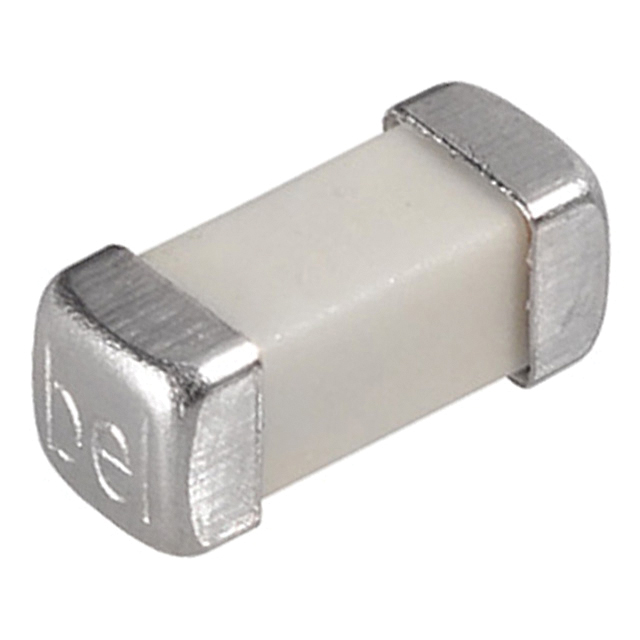

SSQ 3.5/5K
ObsoleteBel Fuse Inc.
FUSE BRD MNT 3.5A 125VAC/VDC SMD
SSQ 3.5/5K
ObsoleteBel Fuse Inc.
FUSE BRD MNT 3.5A 125VAC/VDC SMD
Description
General part information
SSQ 3.5/5K
3.5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Technical Specifications
Parameters and characteristics for this part
| Specification | SSQ 3.5/5K |
|---|---|
| Approval Agency | CSA, cULus, CE |
| Breaking Capacity (AC) | 50 A |
| Breaking Capacity (DC) | 300 A |
| Current Rating | 3.5 A |
| DC Cold Resistance | 0.024 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 3.9 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.1 in |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.1 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
