EN3P6FRAPCBW

Active

Switchcraft Inc.

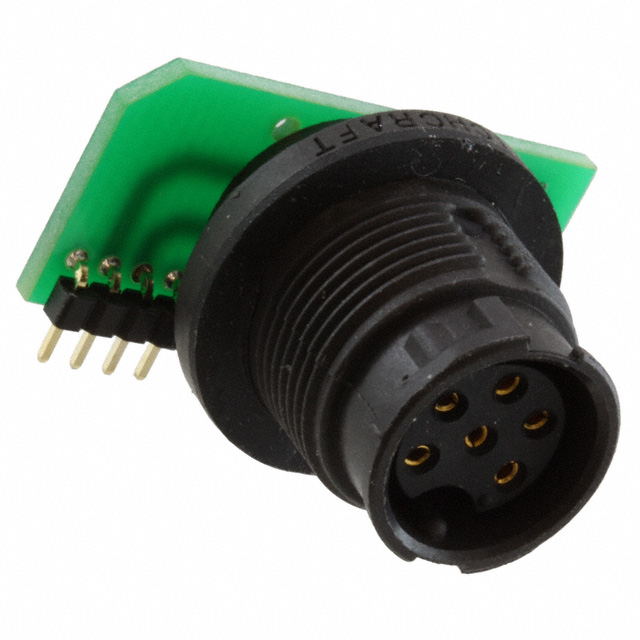

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P6FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P6FRAPCBW	EN3P6F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	6	6
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Solder, Circuit Board, Solder, Crimp
Voltage Rating	250 VAC	250 VAC

EN3P6F Series

CONN CIRCULAR SKT 6 POS SOLDER ST PANEL MOUNT 6 TERMINAL 1 PORT BULK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Current Rating (Amps)	Mounting Type	Color	Ingress Protection	Primary Material	Voltage Rating	Shielding	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Connector Type	Orientation	Insert Material	Applications	Mounting Feature	Fastening Type
Switchcraft Inc. EN3P6FPX	65 °C	-40 °C	Solder	Copper Alloy	7.5 A	Panel Mount, Through Hole	Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock
Switchcraft Inc. EN3P6FKX	65 °C	-40 °C		Copper Alloy	7.5 A		Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock
Switchcraft Inc. EN3P6FRAPCBW	65 °C	-40 °C	Circuit Board, Solder	Copper Alloy	4 A	Panel Mount, Right Angle, Through Hole	Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock
Switchcraft Inc. EN3P6FCX	65 °C	-40 °C	Crimp	Copper Alloy	7.5 A		Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock
Switchcraft Inc. EN3P6FRAPCBN	65 °C	-40 °C	Circuit Board, Solder	Copper Alloy	4 A	Panel Mount, Right Angle, Through Hole	Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock
Switchcraft Inc. EN3P6FX	65 °C	-40 °C		Copper Alloy	7.5 A		Black	IP66/IP68	Plastic	250 VAC	Unshielded	UL94 V-0	6	Gold	Receptacle, Female Sockets	Keyed	Elastomer	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00
		10	$ 14.28

Description

General part information

EN3P6F Series

6 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
