Description
General part information
ANTX100P112B24553

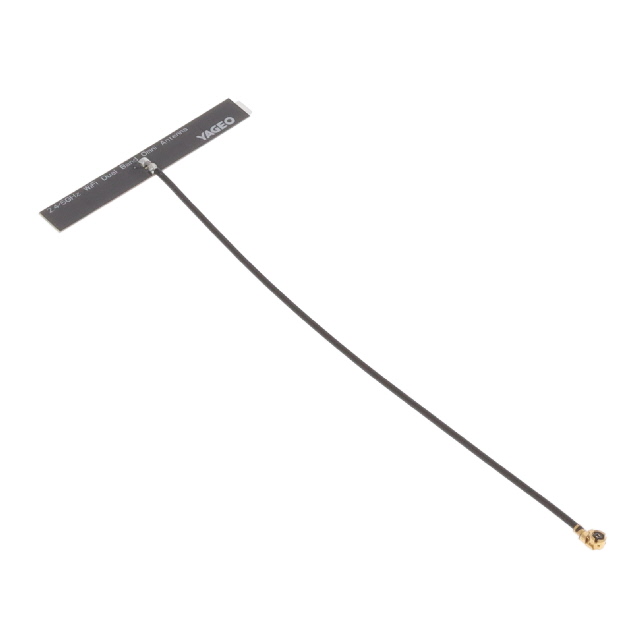

RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | ANTX100P112B24553 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Wi-Fi, Bluetooth, Zigbee™ |
| Features | Cable, 100mm |
| Frequency (Band) | 5.5125 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.875 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 2.2 dBi |
| Height (Max) | 0.022 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max | 1 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2.5 |
