EWT225JB2K50
UnknownStackpole Electronics Inc
RES CHAS MNT 2.5K OHM 5% 225W
EWT225JB2K50
UnknownStackpole Electronics Inc
RES CHAS MNT 2.5K OHM 5% 225W
Description
General part information
EWT225JB2K50

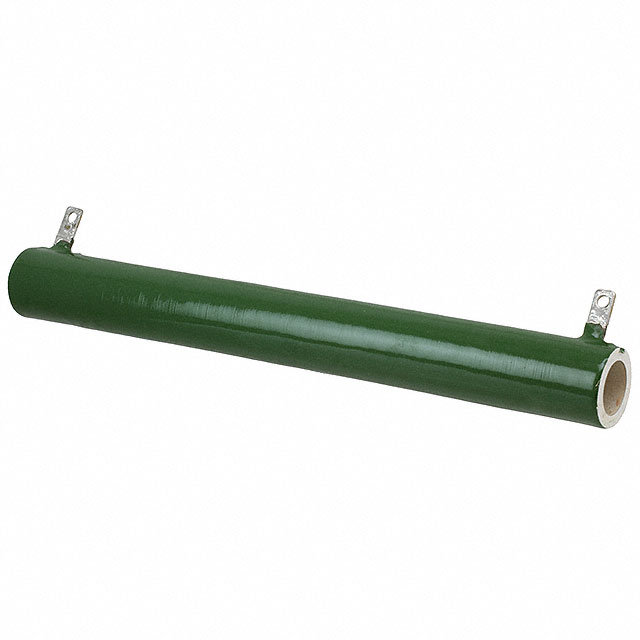

2.5 kOhms ±5% 225W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | EWT225JB2K50 |
|---|---|
| Coating | Vitreous Enamel Coated |
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Housing Type | Vitreous Enamel Coated |
| Lead Style | Tab |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Tubular, Radial |
| Power (Watts) | 225 W |
| Resistance | 2.5 kOhm |
| Size / Dimension Diameter | 1.126 in |
| Size / Dimension Length | 10.512 in |
| Tolerance | 5 % |
