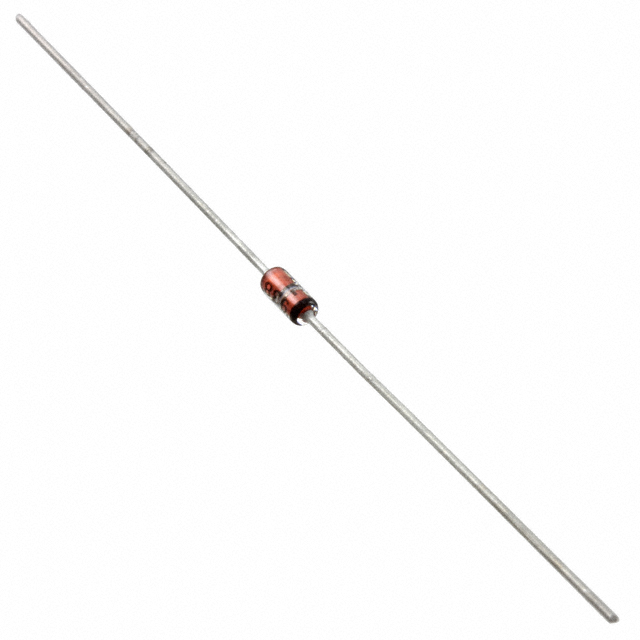

JANTX1N4153-1
ActiveMicrochip Technology
DIODE 50V, 150MA THROUGH HOLE DO-204AH (DO-35)
Deep-Dive with AI
Search across all available documentation for this part.
Documents1N4153-1
JANTX1N4153-1
ActiveMicrochip Technology
DIODE 50V, 150MA THROUGH HOLE DO-204AH (DO-35)
Deep-Dive with AI
Documents1N4153-1
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N4153-1 | 1N4153 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | 2 pF | 2 pF |
| Current - Average Rectified (Io) | 150 mA | 150 mA |
| Current - Reverse Leakage @ Vr | 50 nA | 50 nA |
| Grade | Military | Military |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C | -65 C |
| Package / Case | Axial, DO-35, DO-204AH | Axial, DO-35, DO-204AH, DO-213AA |
| Qualification | MIL-PRF-19500/337 | MIL-PRF-19500/337 |
| Reverse Recovery Time (trr) | 4 ns | 4 ns |
| Speed | Any Speed | Any Speed |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | DO-204AH (DO-35) | DO-204AH (DO-35), DO-213AA |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V | 50 - 75 V |
| Voltage - Forward (Vf) (Max) @ If | 880 mV | 880 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.94 | |
| Microchip Direct | N/A | 1 | $ 35.47 | |
1N4153 Series
DIODE GEN PURP 50V 150MA DO35
| Part | Grade | Qualification | Package / Case | Capacitance @ Vr, F | Mounting Type | Reverse Recovery Time (trr) | Speed | Speed | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JANTXV1N4153-1 | Military | MIL-PRF-19500/337 | Axial, DO-204AH, DO-35 | 2 pF | Through Hole | 4 ns | Any Speed | 200 mA | 175 ░C | -65 C | 50 V | 150 mA | 50 nA | 880 mV | DO-204AH (DO-35) | Standard |
Microchip Technology 1N4153UR-1 | ||||||||||||||||
Microchip Technology 1N4153-1 | Axial, DO-204AH, DO-35 | Through Hole | 4 ns | Any Speed | 200 mA | 175 ░C | -65 C | 50 V | 150 mA | 50 nA | 880 mV | DO-204AH (DO-35) | Standard | |||
Microchip Technology JAN1N4153-1 | Military | MIL-PRF-19500/337 | Axial, DO-204AH, DO-35 | 2 pF | Through Hole | 4 ns | Any Speed | 200 mA | 175 ░C | -65 C | 75 V | 150 mA | 50 nA | 880 mV | DO-204AH (DO-35) | Standard |
Microchip Technology JANTX1N4153-1 | ||||||||||||||||
Microchip Technology JANTX1N4153-1 | Military | MIL-PRF-19500/337 | Axial, DO-204AH, DO-35 | 2 pF | Through Hole | 4 ns | Any Speed | 200 mA | 175 ░C | -65 C | 50 V | 150 mA | 50 nA | 880 mV | DO-204AH (DO-35) | Standard |
Microchip Technology 1N4153-1 | ||||||||||||||||
Microchip Technology 1N4153UR-1 | DO-213AA | 2 pF | Surface Mount | Any Speed | 200 mA | 175 ░C | -65 C | 50 V | 150 mA | 50 nA | DO-213AA | Standard |
