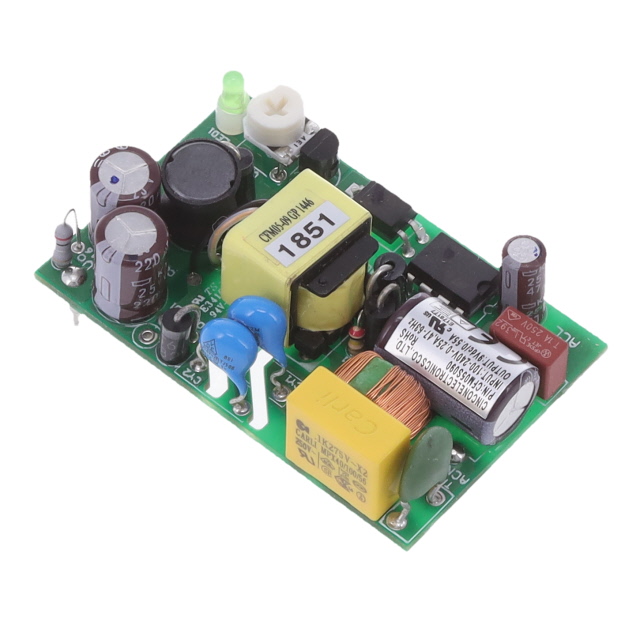

CFM05S090
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 9V 5W
CFM05S090
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 9V 5W
Description
General part information
CFM05S090
Open Frame AC DC Converters 1 Output 9V 550mA 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM05S090 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output (Max) | 550 mA |
| Efficiency | 77 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.83 in |
| Size / Dimension Length | 2.17 in |
| Size / Dimension Width | 1.38 in |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 9 V |
