17980-7PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17980-7PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 7POS GOLD CRIMP

Part	Connector Type	Ingress Protection	Fastening Type	Current Rating (Amps)	Number of Positions	Applications	Contact Material	Contact Finish - Mating	Mounting Feature	Termination	Material Flammability Rating	Orientation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Voltage Rating	Primary Material
Conxall/Switchcraft 17980-7PG-300	Male Pins, Receptacle	IP67 - Dust Tight, Waterproof	Bayonet Lock	3.5 A	7	Data, Industrial, Instrumentation, Medical	Copper Alloy	Gold	Bulkhead - Front Side Nut	Crimp	UL94 HB	B	Black	85 °C	-40 °C	Unshielded	600 VAC	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

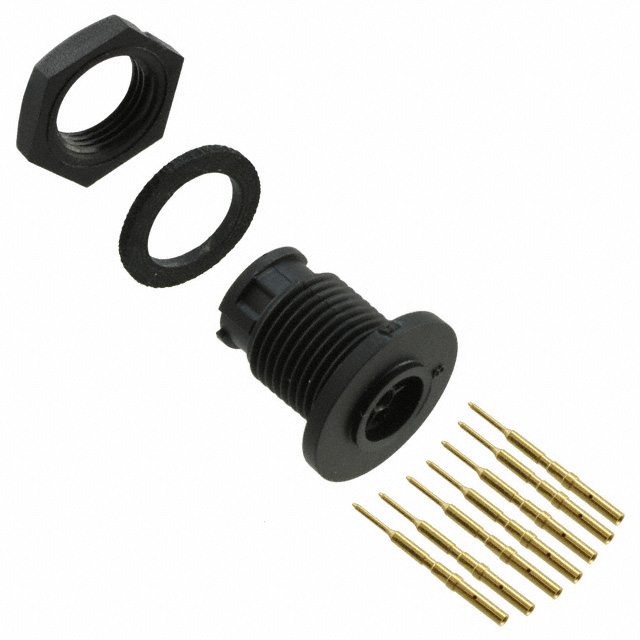

7 Position Circular Connector Receptacle, Male Pins Crimp
