828801-6

Active

TE Connectivity AMP Connectors

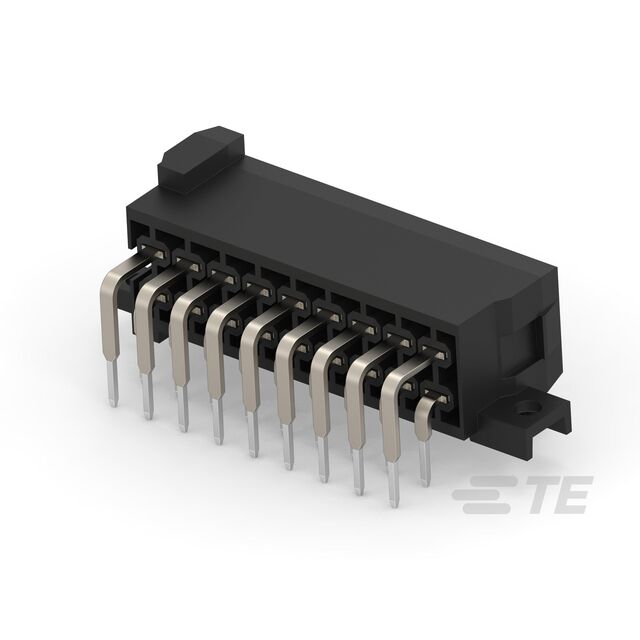

CONN HEADER R/A 18POS 5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 18POS 5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	828801-6	828801 Series

Connector Type	Plug	Plug
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.366 in	0.366 in
Contact Length - Mating	9.3 mm	9.3 mm
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Features	Mounting Flange	Mounting Flange
Insulation Color	Black	Black
Insulation Height	19 mm	19 mm
Insulation Height	0.748 in	0.748 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	18	6 - 18
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Row Spacing - Mating	5 mm	5 mm
Row Spacing - Mating	0.197 in	0.197 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER R/A 18POS 5MM

Part	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions Loaded	Material Flammability Rating	Insulation Material	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Length - Mating	Contact Length - Mating	Termination	Contact Material	Number of Positions	Mounting Type	Style	Number of Rows	Shrouding
TE Connectivity AMP Connectors 828801-6	5 mm	0.197 "	Black	105 ░C	-55 °C	Tin	19 mm	0.748 in	Tab	3.5 mm	0.138 in	Plug	All	UL94 V-2	Polyamide (PA66), Nylon 6/6	Rectangular	5 mm	0.197 in	Mounting Flange	0.366 in	9.3 mm	Solder	Brass	18	Through Hole, Right Angle	Board to Cable/Wire	2	Shrouded - 4 Wall
TE Connectivity AMP Connectors 828801-2	5 mm	0.197 "	Black	105 ░C	-55 °C	Tin	19 mm	0.748 in	Tab	3.5 mm	0.138 in	Plug	All	UL94 V-2	Polyamide (PA66), Nylon 6/6	Rectangular	5 mm	0.197 in	Mounting Flange	0.366 in	9.3 mm	Solder	Brass	6	Through Hole, Right Angle	Board to Cable/Wire	2	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 18 position 0.197" (5.00mm)
