Description
General part information

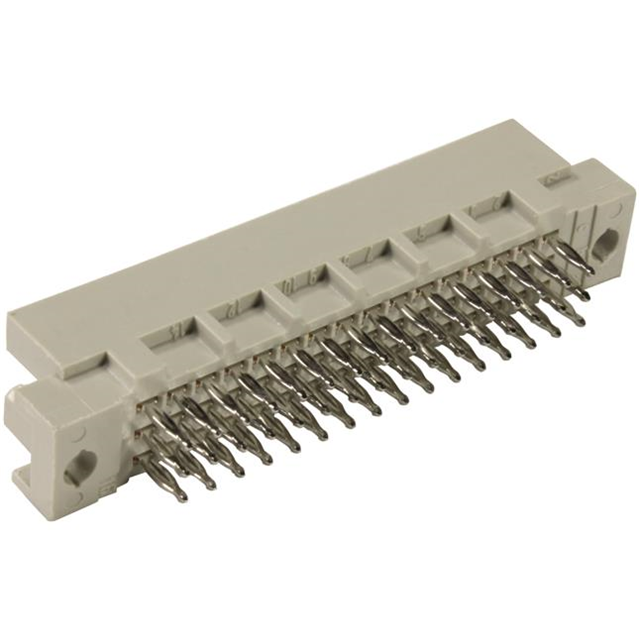

09281487904
48 Position Din Connector Header, Male Pins Gold-Palladium Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09281487904 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold-Palladium |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Current Rating | 2 A |
| Level, Class | 3 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | 2R |
| Termination | Wire Wrap |
