C-BR25-AK53

Active

CnC Tech, LLC

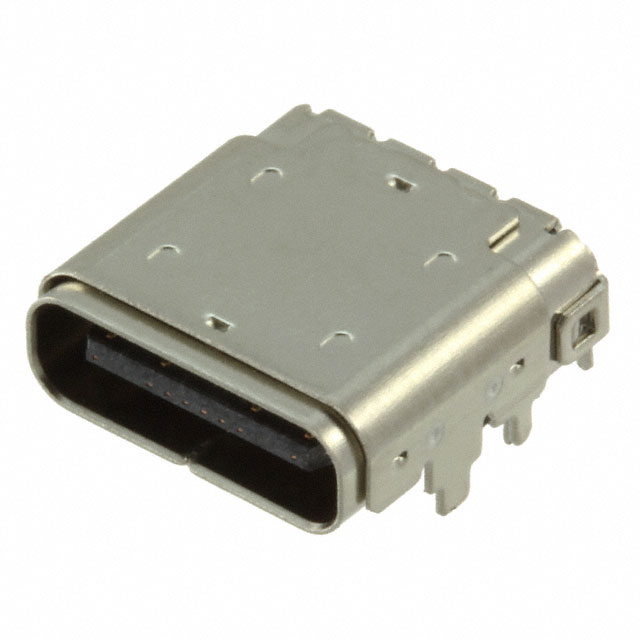

CONN RCP USB3.1 TYPEC 24P SMD RA

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCP USB3.1 TYPEC 24P SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	C-BR25-AK53

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

CONN RCP USB3.1 TYPEC 24P SMD RA

Part	Features	Material Flammability Rating	Mating Cycles	Specifications	Termination	Contact Finish	Gender	Number of Contacts	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Insulation Color	Current Rating (Amps)	Number of Ports
CnC Tech, LLC C-BR25-AK53	Board Guide	UL94 V-0	10000	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	Gold	Receptacle	24	Surface Mount, Right Angle, Through Hole	85 °C	-55 °C	Horizontal	USB-C (USB TYPE-C)	Black	5 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
