A6X30144550
ActiveSiemens
INDICATOR LIGHT. WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A6X30144550
ActiveSiemens
INDICATOR LIGHT. WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A6X30144550 |
|---|---|
| Ingress Protection | NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1 |
| Lamp Color | White |
| Lens Color | White |
| Lens Size [diameter] | 22 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [Max] | 1400 mcd |
| Millicandela Rating [Min] | 900 mcd |
| Panel Cutout Dimensions | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Spring Terminal |
| Type | LED |
| Voltage | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 61.48 | |
Description
General part information
A6X30144550

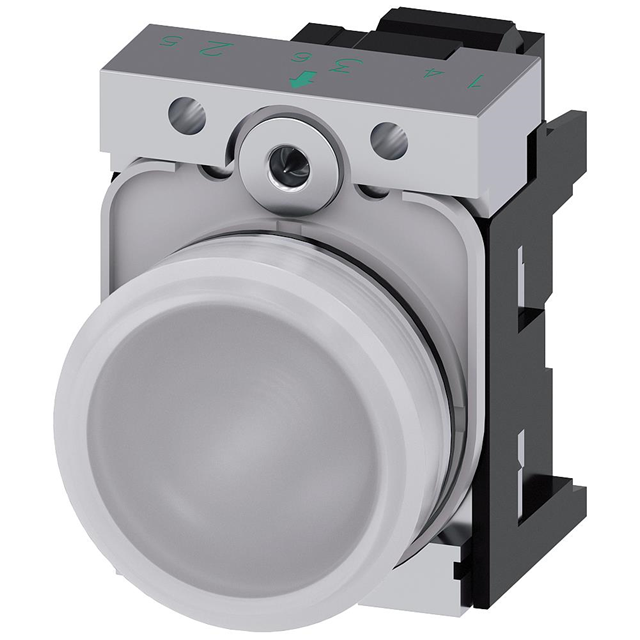

LED Panel Indicator White Diffused 230V Spring Terminal
Documents
Technical documentation and resources
