P1057/8 CL007

Active

ALPHA WIRE

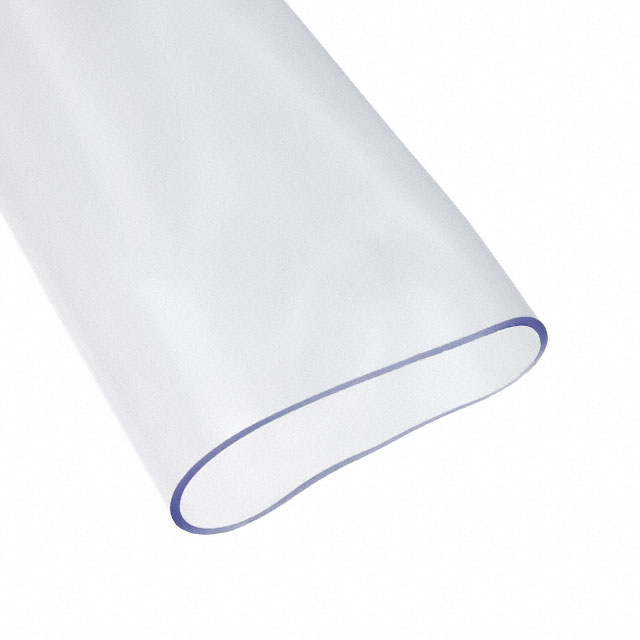

TUBING 0.875" ID PVC 50' CLEAR

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.875" ID PVC 50' CLEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P1057/8 CL007	P1057/8 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Clear	Clear, Black
Diameter - Inside [diameter]	22.22 mm	22.22 mm
Diameter - Inside [diameter]	0.875 in	0.875 in
Diameter - Outside [diameter]	24.92 mm	24.92 mm
Diameter - Outside [diameter]	0.981 in	0.981 in
Environment Protection	UV Resistant, Corrosion Resistant	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	15.24 m	15.24 m
Length [x]	50 ft	50 ft
Liquid Protection	Oil Resistant	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1	UL 224 VW-1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Type	Solid Tubing	Solid Tubing
Type Attributes	Smooth	Smooth
Wall Thickness [custom]	0.89 mm	0.89 mm
Wall Thickness [custom]	0.035 in	0.035 in

TUBING 0.875" ID PVC 50' CLEAR

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Liquid Protection	Type	Type Attributes	Material Flammability Rating	Length	Length [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Heat Protection	Color	Environment Protection	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]
ALPHA WIRE P1057/8 CL007	22.22 mm	0.875 in	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	Oil Resistant	Solid Tubing	Smooth	UL 224 VW-1	15.24 m	50 ft	24.92 mm	0.981 in	Heat Resistant	Clear	Corrosion Resistant, UV Resistant	Abrasion Resistant	0.89 mm	0.035 in
ALPHA WIRE P1057/8 BK007	22.22 mm	0.875 in	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	Oil Resistant	Solid Tubing	Smooth	UL 224 VW-1	15.24 m	50 ft	24.92 mm	0.981 in	Heat Resistant	Black	Corrosion Resistant, UV Resistant	Abrasion Resistant	0.89 mm	0.035 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clear Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.875" (22.22mm) 50.00' (15.24m)
