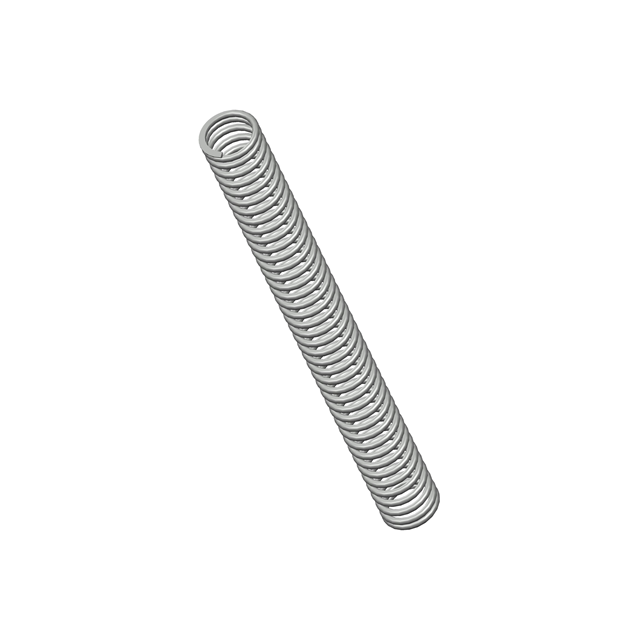

3334CS
ActiveCentury Spring Corp
COMP O= .625,L= 6.00,W= .072
3334CS
ActiveCentury Spring Corp
COMP O= .625,L= 6.00,W= .072
Description
General part information
3334CS
COMP O= .625,L= 6.00,W= .072
Technical Specifications
Parameters and characteristics for this part
| Specification | 3334CS |
|---|---|
| Diameter - Inside | 0.481 in |
| Diameter - Outside | 0.625 in |
| End Style | Ground, Closed |
| Finish | Gold Iridite |
| Free Length | 6 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 5.8 lbs/in |
| Type | Compression |
| Wire Diameter | 0.072 in |
