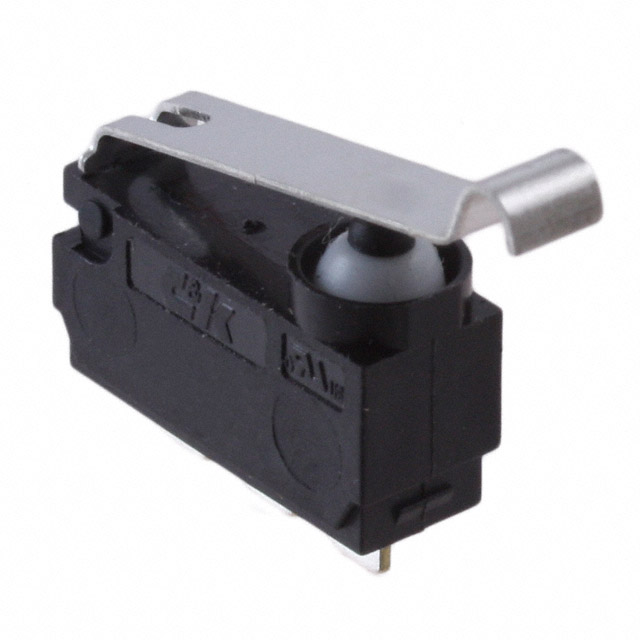

ZMSL03130T11SSC

Active

LITTELFUSE

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZMSL03130T11SSC

Active

LITTELFUSE

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.47
		10	$ 3.20
		25	$ 3.00
		61	$ 2.93
		122	$ 2.33
		244	$ 2.20
		488	$ 2.07
		976	$ 1.93

Description

General part information

ZMSL03130 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZMSL03130T11SSC	ZMSL03130 Series

Actuator Type	Simulated Roller, Lever	Round (Pin Plunger), Simulated Roller, Lever, Lever, Straight
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 A
Differential Travel	0.03 in	0.012 - 0.03 "
Differential Travel	0.76 mm	0.3 - 0.76 mm
Electrical Life	100000 Cycles	100000 Cycles
Features	-	Support Posts
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Chassis Mount	Through Hole, Through Hole, Right Angle, Chassis Mount
Operating Force	-	130 - 195 gf
Operating Position	0.539 in	0.44 - 0.539 in
Operating Position	13.7 mm	10.55 - 13.7 mm
Operating Position	-	0.415 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.6 mm	0.79 - 1.6 mm
Overtravel	0.062 in	0.031 - 0.062 in
Pretravel	0.188 in	0.03 - 0.188 in
Pretravel	4.8 mm	0.8 - 4.8 mm
Release Force	45 gf	13 - 55 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	12 V	12 V

ZMSL03130 Series

SWITCH SNAP ACTION SPDT 3A 125V

Part	Differential Travel	Differential Travel	Voltage Rating - DC	Overtravel	Overtravel	Mechanical Life	Circuit	Mounting Type	Actuator Type	Operating Position	Operating Position	Current Rating (Amps)	Electrical Life	Ingress Protection	Operating Force	Voltage Rating - AC	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Release Force	Switch Function	Operating Position	Features
LITTELFUSE ZMSL03130P00PSC	0.012 "	0.3 mm	12 V	0.79 mm	0.031 in	500000 Cycles	SPDT	Through Hole	Round (Pin Plunger)	0.415 in	10.55 mm	3 A	100000 Cycles	IP65 - Dust Tight, Water Resistant	130 gf	125 V	0.03 in	0.8 mm	85 °C	-40 °C	PC Pin	13 gf	On-Mom
LITTELFUSE ZMSL03130T11PSC	0.03 in	0.76 mm	12 V	1.6 mm	0.062 in	500000 Cycles	SPDT	Through Hole	Lever, Simulated Roller		13.7 mm	3 A	100000 Cycles	IP65 - Dust Tight, Water Resistant		125 V	0.188 in	4.8 mm	85 °C	-40 °C	PC Pin	45 gf	On-Mom	0.539 in
LITTELFUSE ZMSL03130P00RRC	0.012 "	0.3 mm	12 V	0.79 mm	0.031 in	500000 Cycles	SPDT	Through Hole, Right Angle	Round (Pin Plunger)	0.415 in	10.55 mm	3 A	100000 Cycles	IP65 - Dust Tight, Water Resistant	130 gf	125 V	0.03 in	0.8 mm	85 °C	-40 °C	PC Pin	13 gf	On-Mom		Support Posts
LITTELFUSE ZMSL03130T11SSC	0.03 in	0.76 mm	12 V	1.6 mm	0.062 in	500000 Cycles	SPDT	Chassis Mount	Lever, Simulated Roller		13.7 mm	3 A	100000 Cycles	IP65 - Dust Tight, Water Resistant		125 V	0.188 in	4.8 mm	85 °C	-40 °C	Solder Lug	45 gf	On-Mom	0.539 in
LITTELFUSE ZMSL03130T10LLC	0.02 in	0.5 mm	12 V	1.35 mm	0.053 in	500000 Cycles	SPDT	Through Hole, Right Angle	Lever, Straight		11.2 mm	3 A	100000 Cycles	IP65 - Dust Tight, Water Resistant	195 gf	125 V	0.152 in	3.85 mm	85 °C	-40 °C	PC Pin	55 gf	On-Mom	0.44 in	Support Posts
