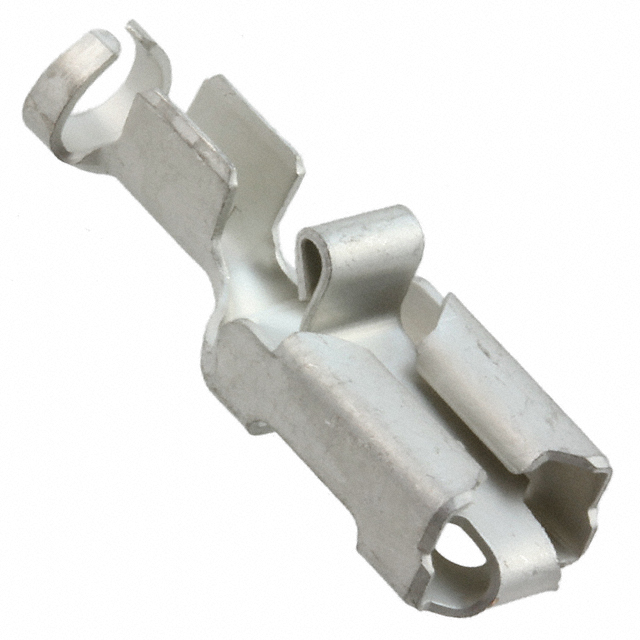

928901-3

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13-17AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13-17AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	928901-3

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	4.32 mm
Insulation Diameter [Max] [diameter]	0.17 "
Insulation Diameter [Min] [diameter]	0.118 in
Insulation Diameter [Min] [diameter]	3 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	17 AWG
Wire Gauge [Min]	13 AWG

CONN QC RCPT 13-17AWG 0.250

Part	Tab Thickness	Tab Thickness	Termination	Mounting Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Tab Width	Tab Width	Contact Material	Gender	Terminal Type
TE Connectivity AMP Connectors 928901-3	0.032 in	0.81 mm	Crimp	Free Hanging (In-Line)	Tin	13 AWG	17 AWG	Non-Insulated	4.32 mm	0.118 in	3 mm	0.17 "	6.35 mm	0.25 in	Brass	Female	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 13-17 AWG Crimp Connector Non-Insulated
