Description

General part information

WXS2021

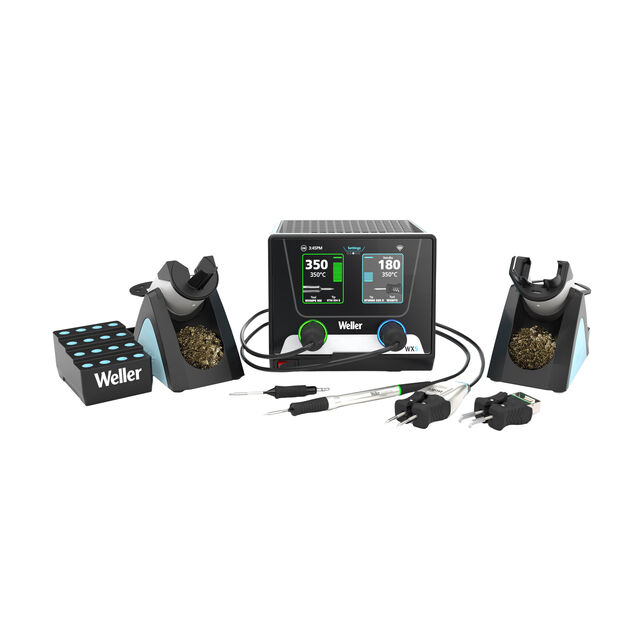

WXS2021 is a pico (nano)/micro rework kit for every purpose. It is a new soldering kit. Optimized rework system for all pico (nano) and micro tasks in the electronics, medical, automotive and aerospace industry. The set offers 1 soldering iron with 2 soldering tips from the smallest to bigger soldering application, as well as a desoldering tweezers with pico and micro tips. The tools have the fastest heat-up and recovery times, full tip-to-station process control, best-in-class connectivity, easy-to-use color touch screen and cybersecurity. The kit includes 2 soldering tips, a pico tip and a micro tip. Further a micro tweezers with 2 tips, a pico tip and a micro tip. Both, the pico tip for very small applications and the micro tip for standard applications fit to just one soldering handle. up to 10 parameter settings can be customized and stored in the iron, including standby temperatures and auto-off times.

Technical Specifications

Parameters and characteristics for this part

SpecificationWXS2021
Base UnitWX
Control/Display TypeDigital
FeaturesESD Safe, LCD Display
IncludesTips, Sponge, Tip Holder, Iron, Wire Scouring Pad, Iron Holders
Number of Channels2
Plug TypeNot Included
Supplied Iron, Tweezer, HandleWXMPS MS, WXMTS
Supplied Tips/NozzlesRTWMS030, RTMS013SMS, RTWPS002, RTMPS004SMS
Temperature Range (Max)850 °F
Temperature Range (Min)200 °F
TypeDesoldering, Soldering, Rework
Voltage - Input120 VAC
Wattage300 W
WorkstandWSR200
