1001011

Active

KYOCERA AVX

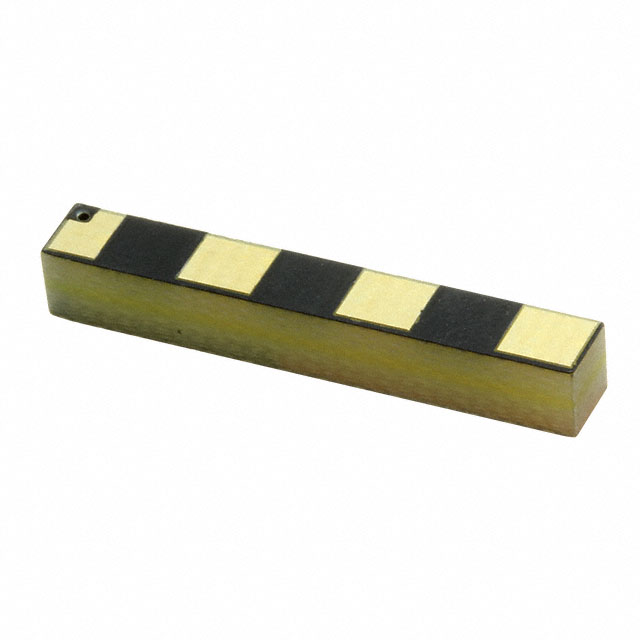

RF ANT 1.561GHZ/1.575GHZ CHIP

Search across all available documentation for this part.

Active

KYOCERA AVX

RF ANT 1.561GHZ/1.575GHZ CHIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GPS Chip Solder Surface Mount

Technical documentation and resources

Specification	1001011	1001011 Series

Antenna Type	Chip	Chip
Applications	GPS	GPS
For Use With/Related Products	-	1001011
Frequency	-	868 MHz
Frequency	-	928 MHz
Frequency (Center/Band)	1.575 GHz, 1.561 GHz	1.561 - 1.575 GHz
Frequency Group	UHF	UHF
Frequency Group [Max]	2 GHz	2 GHz
Frequency Group [Min]	1 GHz	1 GHz
Frequency Range [Max]	1.58 GHz	1.58 GHz
Frequency Range [Min]	1.57 GHz	1.57 GHz
Gain	-1.8 dBi	-1.8 dBi
Height (Max)	3.3 mm	3.3 mm
Height (Max) [Max] [z]	0.13 in	0.13 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	2	2
Power - Max [Max]	2 W	2 W
RF Family/Standard	Navigation	Navigation
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	2	2

Part	Type	Frequency [Min]	Frequency [Max]	For Use With/Related Products	Supplied Contents	Termination	Height (Max) [Max] [z]	Height (Max)	Antenna Type	VSWR	Mounting Type	Gain	Number of Bands	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Frequency (Center/Band)	Applications
KYOCERA AVX 1001011-04	Antenna	868 MHz	928 MHz	1001011	Board(s)
KYOCERA AVX 1001011						Solder	0.13 in	3.3 mm	Chip	2	Surface Mount	-1.8 dBi	2	2 W	2 GHz	1 GHz	UHF	1.57 GHz	1.58 GHz	Navigation	1.561 GHz, 1.575 GHz	GPS
