M3AAA-1406J

Active

IDC CABLE - MSC14A/MC14G/MSC14A

Search across all available documentation for this part.

Active

IDC CABLE - MSC14A/MC14G/MSC14A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3AAA-1406J	M3AAA Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Length	-	1.67 - 5 ft
Number of Positions	14	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

IDC CABLE - MSC26A/MC26G/MSC26A

Part	Number of Rows	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Color	Length	Length	Length	Number of Positions	Length
3M M3AAA-2636J	2	26	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket
3M M3AAA-5040K	2	50	0.1 in	2.54 mm	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket	Multiple, Twisted Pair (Flat)
3M M3AAA-3418J	2	34	0.1 in	2.54 mm	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket
3M M3AAA-1406J	2	14	0.1 in	2.54 mm			Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket		152.4 mm	6 "	0.5 '
3M M3AAA-1006R	2	10	0.1 in	2.54 mm			Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket	Multiple, Ribbon	152.4 mm	6 "	0.5 '
3M M3AAA-2018J	2	20	0.1 in	2.54 mm	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket
3M M3AAA-5036R	2	50	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket	Multiple, Ribbon
3M M3AAA-2436J	2	24	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket
3M M3AAA-1606J	2		0.1 in	2.54 mm			Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket		152.4 mm	6 "	0.5 '	16
3M M3AAA-6020K	2	60	0.1 in	2.54 mm			Unshielded	0.05 "	1.27 mm	IDC	0.76 Ám	30 Áin	Gold	Socket to Socket	Multiple, Twisted Pair (Flat)	508 mm				1.67 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

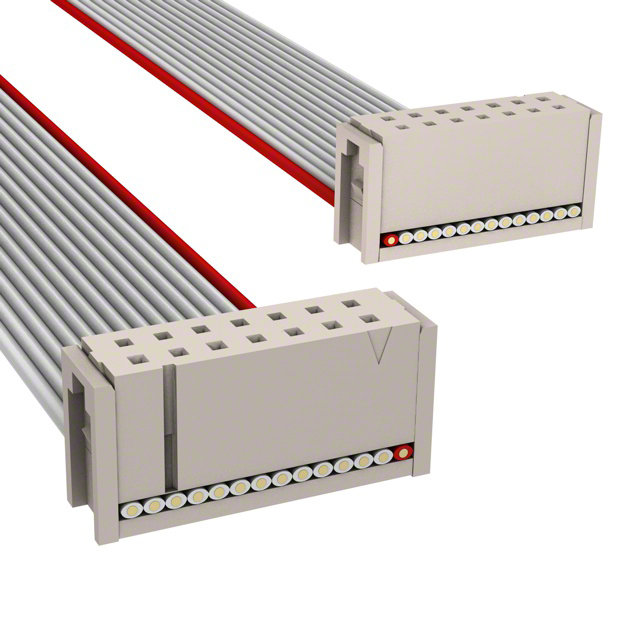

14 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
