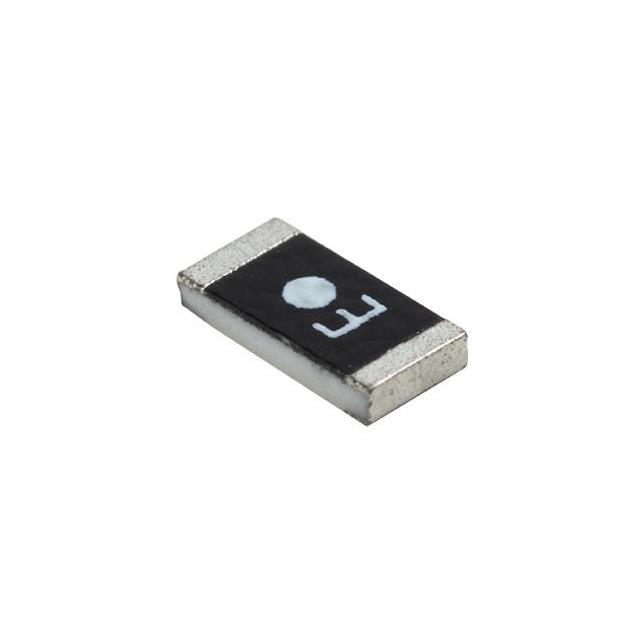

ANT3216A063R2455A

Active

Pulse Electronics

ANTENNA CHIP 2.4/5GHZ PIFA

Search across all available documentation for this part.

Active

Pulse Electronics

ANTENNA CHIP 2.4/5GHZ PIFA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT3216A063R2455A	ANT3216 Series

Antenna Type	Chip	Chip
Applications	Wi-Fi, ISM	Wi-Fi, ISM, Bluetooth, 5G, Zigbee™, 4G, GPS
Frequency (Center/Band)	2.45 GHz, 5.5 GHz	1.575 - 5.5 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	UHF
Frequency Group [Max]	3 GHz	2 - 3 GHz
Frequency Group [Min]	2 GHz	1 - 2 GHz
Frequency Range	-	1600 MHz
Frequency Range	-	1550 MHz
Gain	2.23 dBi, 1.59 dBi	0.45 - 2.23 dBi
Height (Max)	0.55 mm	0.55 mm
Height (Max)	-	1.2 mm
Height (Max) [Max]	0.022 in	0.022 - 0.047 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	2	1 - 2
Power - Max [Max]	1 W	1 W
Return Loss	10 dB	-10 - 10 dB
RF Family/Standard	-	Bluetooth, Cellular, 802.15.4, General ISM, WiFi, Navigation
Termination	Solder	Solder

ANTENNA CHIP 2.4/5GHZ PIFA

Part	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss	Gain	Termination	Antenna Type	Power - Max [Max]	Number of Bands	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Frequency Group
Pulse Electronics ANT3216A063R2455A	Surface Mount	0.022 in	0.55 mm	10 dB	1.59 dBi, 2.23 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	ISM, Wi-Fi	4 GHz	2 GHz	3 GHz
Pulse Electronics ANT3216LL11R2455A	Surface Mount	0.047 in		6.5 dB	0.45 dBi, 0.64 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™	4 GHz	2 GHz	3 GHz	1.2 mm	802.15.4, Bluetooth, Cellular, General ISM, WiFi
Pulse Electronics ANT3216LL15R1575A	Surface Mount	0.047 in		-10 dB	2.01 dBi	Solder	Chip	1 W	1	1.575 GHz	GPS		1 GHz	2 GHz	1.2 mm	Navigation	1600 MHz	1550 MHz	UHF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA ISM, Wi-Fi Chip Solder Surface Mount
