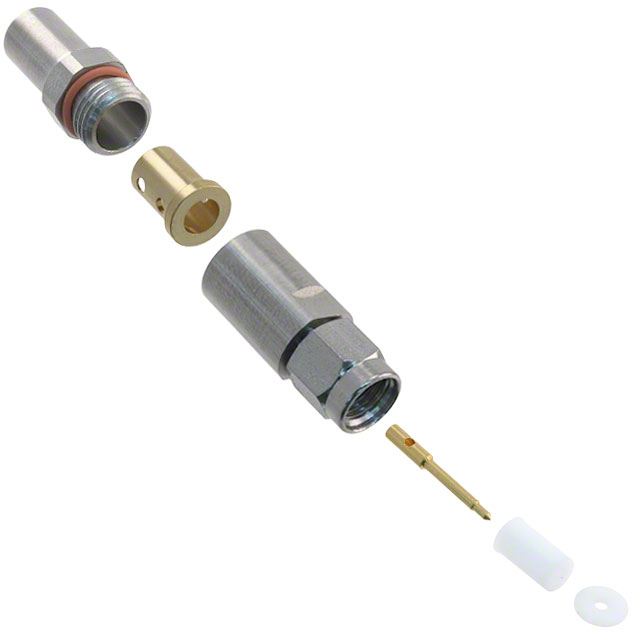

Specification	CS-SM-MHA

Body Material	Stainless Steel
Cable Group	Harbour LL142
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Housing Color	Silver
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp

- Series

Part	Dielectric Material	Body Material	Center Contact Plating	Contact Termination	Fastening Type	Center Contact Material	Cable Group	Number of Ports	Connector Type	Mounting Type	Shield Termination	Housing Color	Connector Style	Connector Plug Diameter	Includes Total Count	Includes	Mounting Feature	Cable Group Diameter (Semi Rigid)	Body Finish	Features	Impedance
Crystek Corporation CS-NM-MHA	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Harbour LL142	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver	N Type
Crystek Corporation CS-DM-MJB	Polyphenylene Oxide (PPO) Polystyrene (PS)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	IW 1501	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver	APC-2.4 OS-50	2.4 mm
Crystek Corporation CS-TM-MSD	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Semflex LA290	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver	TNCA
Crystek Corporation CS-FM-MSC	Polyphenylene Oxide (PPO) Polystyrene (PS)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Semflex HP190	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver		2.92 mm
Crystek Corporation CS-FFB-MSR		Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	RG-405	1	Female Socket Jack	Panel Mount	Clamp	Silver		2.92 mm	3 pcs	Connector Nut Washer	Bulkhead Front Side Nut	0.085 in
Crystek Corporation CS-FF-MJB	Polychlorotrifluoroethylene (PCTFE)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	IW 1501	1	Female Socket Jack	Free Hanging (In-Line)	Clamp	Silver		2.92 mm
Crystek Corporation CS-SF-MSC	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Semflex HP190	1	Female Socket Jack	Free Hanging (In-Line)	Clamp	Silver	SMA
Crystek Corporation CS-TM-MSC	Polyetherimide (PEI)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Semflex HP190	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver	TNCA
Crystek Corporation CS-SM-MCA	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Solder	Threaded	Beryllium Copper	Harbour SS402	1	Male Pin Plug	Free Hanging (In-Line)	Clamp	Silver	SMA
Crystek Corporation BNC-KIT-2.6MF		Brass	Gold		Bayonet Lock	Brass		1		Free Hanging (In-Line)			BNC						Nickel	External Connectors	50 Ohm
