ACT1210-510-2P-TL00
ActiveTDK Corporation
COMMON MODE CHOKES DUAL 51UH 2.6KOHM 100KHZ 0.2A 0.7OHM DCR SMD AUTOMOTIVE AEC-Q200 T/R
ACT1210-510-2P-TL00
ActiveTDK Corporation
COMMON MODE CHOKES DUAL 51UH 2.6KOHM 100KHZ 0.2A 0.7OHM DCR SMD AUTOMOTIVE AEC-Q200 T/R
Description
General part information

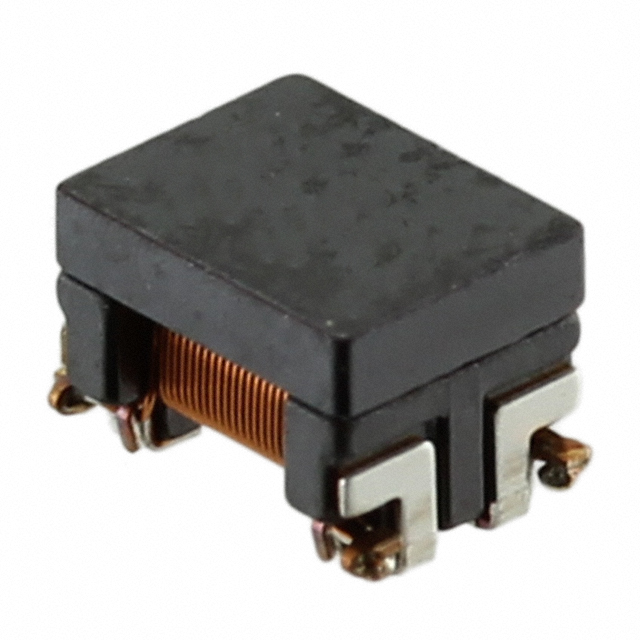

ACT1210-510-2P-TL00
51 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.6 kOhms @ 10 MHz 200mA DCR 700mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ACT1210-510-2P-TL00 |
|---|---|
| Current Rating (Max) | 200 mA |
| DC Resistance (DCR) (Max) | 700 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.098 in |
| Impedance | 2.6 kOhms |
| Inductance | 51 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.154 in |
| Size / Dimension Width | 0.098 in |
| Voltage Rating - DC | 80 VDC |
