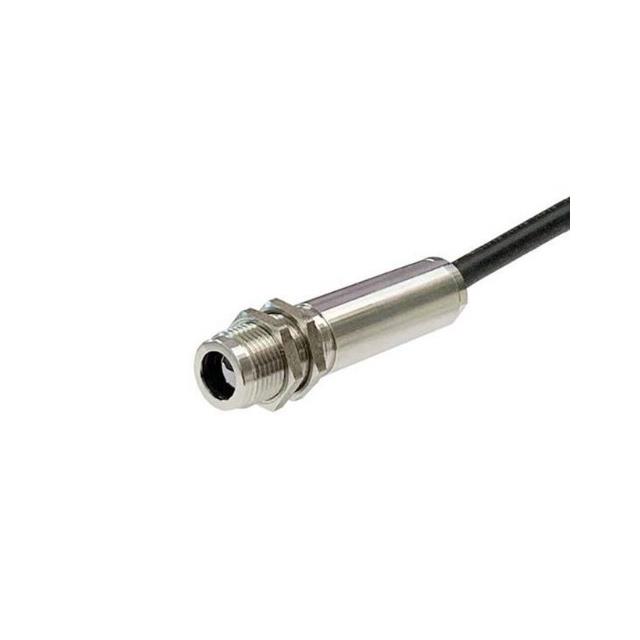

CT-100N-CL420
ActiveDiwell Electronics
IR TEMPERATURE -20~100C 4~20MA
CT-100N-CL420
ActiveDiwell Electronics
IR TEMPERATURE -20~100C 4~20MA
Description
General part information
CT-100N-CL420
Temperature Sensor Analog -20°C ~ 100°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CT-100N-CL420 |
|---|---|
| Accuracy - Highest (Lowest) | 2 °C |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog Current |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Temperature - Local (Max) | 212 °F |
| Sensing Temperature - Local (Min) | -20 °C |
| Sensor Type | Analog |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 20 VDC |
