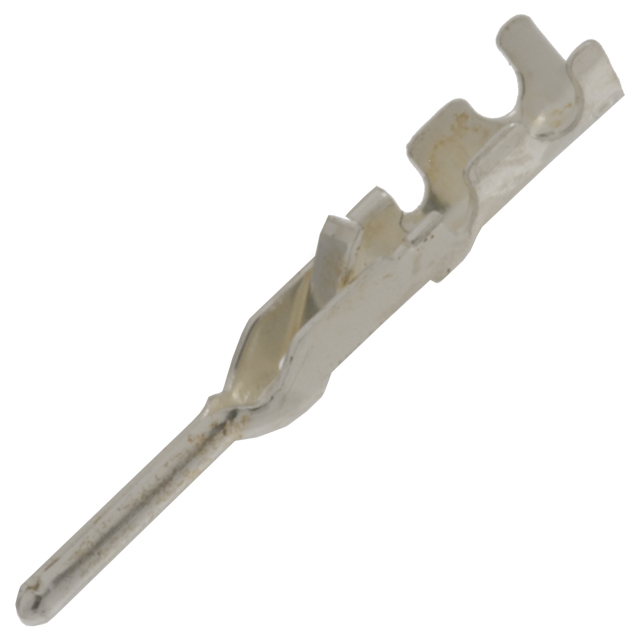

Specification	HR10-PC-112

Contact Finish	Silver
Contact Material	Copper Alloy
Contact Size	1 mm
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Termination Finish	Copper Alloy
Type	Stamped, Signal
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	26 AWG

HR10 Series

Part	Tool Type	For Use With/Related Products	Termination	Mounting Feature	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Contact Finish - Mating	Color	Primary Material	Fastening Type	Mounting Type	Shielding	Number of Positions	Connector Type	Voltage Rating (DC)	Voltage Rating (AC)	Shell Size - Insert	Shell Size - Insert	Shell Finish	Orientation	Applications	Insert Material	Contact Finish Thickness - Mating	Contact Material	Features	Cable Opening	Plating	Backshell Material	Material Flammability Rating
Hirose Electric Co Ltd HR10-7J-T03
Hirose Electric Co Ltd HR10B-TP	Extraction Tool	Circular Coaxial Contacts
Hirose Electric Co Ltd HR10-7R-6P(73)			Solder Cup	Bulkhead Rear Side Nut	Zinc Alloy	85 °C	-25 °C	2 A	Gold	Silver	Metal	Push-Pull	Panel Mount	Unshielded	6	Male Pins Receptacle	140 VDC	100 VAC	7	7	Nickel	Keyed	Industrial Medical	Nylon PA Polyamide	8 µin	Brass
Hirose Electric Co Ltd HR10-7P-4P(73)			Solder Cup		Zinc Alloy	85 °C	-25 °C	2 A	Gold	Silver	Metal	Push-Pull	Free Hanging (In-Line)	Unshielded	4	Male Pins Plug	200 VDC	150 VAC	7	7	Nickel	Keyed	Industrial Medical	Nylon PA Polyamide	8 µin	Brass	Backshell Clamp	0.205 in	Nickel	Brass
Hirose Electric Co Ltd HR10-7R-4S(73)			Solder Cup	Bulkhead Rear Side Nut	Zinc Alloy	85 °C	-25 °C	2 A	Gold	Silver	Metal	Push-Pull	Panel Mount	Unshielded	4	Female Sockets Receptacle	200 VDC	150 VAC	7	7	Nickel	Keyed	Industrial Medical	Nylon PA Polyamide	8 µin	Beryllium Copper
Hirose Electric Co Ltd HR10D-TC-02
Hirose Electric Co Ltd HR10-7R-6PA(73)			Solder	Bulkhead Rear Side Nut	Zinc Alloy	85 °C	-25 °C	2 A	Gold	Silver	Metal	Push-Pull	Panel Mount Through Hole	Unshielded	6	Male Pins Receptacle	140 VDC	100 VAC	7	7	Nickel	Keyed	Industrial Medical	Nylon PA Polyamide	8 µin	Brass
Hirose Electric Co Ltd HR10-10P-12S			Solder Cup			85 °C	-25 °C	2 A	Gold		Metal	Push-Pull	Free Hanging (In-Line)	Unshielded	12	Female Sockets Plug	140 VDC	100 VAC	10	10	Nickel	Keyed				Copper Alloy		0.283 in
Hirose Electric Co Ltd HR10-7TR-6S(73)			Solder Cup	Bulkhead Rear Side Nut	Brass	85 °C	-25 °C	2 A	Gold	Silver	Metal	Threaded	Panel Mount	Unshielded	6	Female Sockets Receptacle	140 VDC	100 VAC	7	7	Nickel	Keyed	Industrial Medical	Nylon PA Polyamide	8 µin	Beryllium Copper					UL94 V-0
Hirose Electric Co Ltd HR10-10PA-12S(73)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HR10-PC-112 | Datasheet
